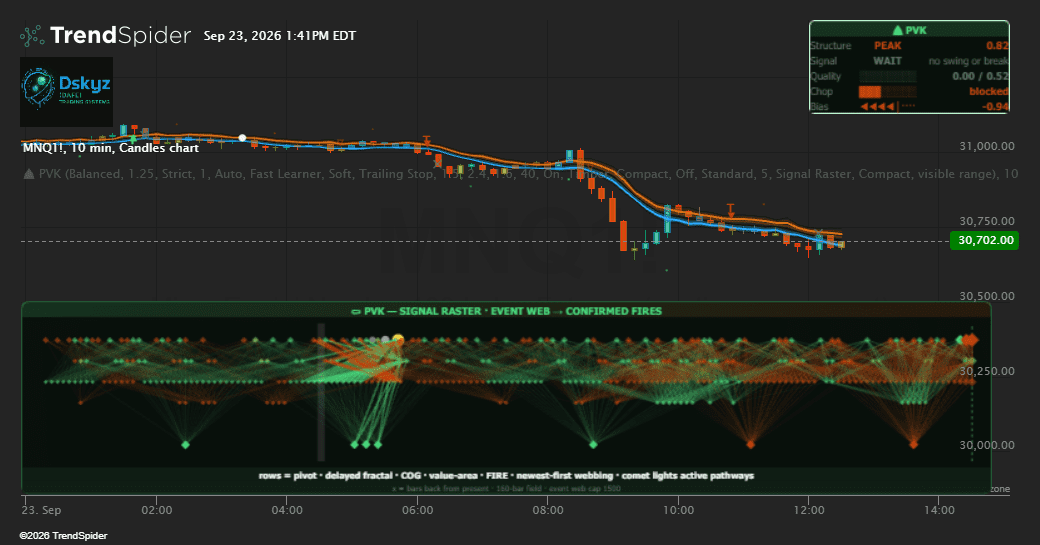

Peak and Valley Kernel

describe_indicator('Peak and Valley Kernel', { shortName: '⛰ PVK', mainColorInheritFrom: 'legend_anchor' });
// ==============================================================================================
// --------------------- Peak and Valley Kernel ----------------------------------------------
// ==============================================================================================
// LIBRARIES & QUANT-CORE
// ==============================================================================================
var jStat = library('jstat');
var fftjs = library('fft-js');
var tinycolor2 = library('tinycolor2');
var bsBounds = library('binary-search-bounds');
var tiny = tinycolor2;
var EPS = 1e-10;
var DAFE = {
    utils: {
        clamp: function (x, lo, hi) { x = (x === null || x === undefined || isNaN(x)) ? lo : x; return x < lo ? lo : (x > hi ? hi : x); },
        nz: function (v, fb) { return (v === null || v === undefined || isNaN(v)) ? (fb === undefined ? 0 : fb) : v; },
        make: function (len, v) { var a = [], k; for (k = 0; k < len; k++) a.push(v); return a; },
        sum: function (a) { var s = 0, k; for (k = 0; k < a.length; k++) s += DAFE.utils.nz(a[k], 0); return s; } },
    stats: {
        mean: function (a) { return a.length ? DAFE.utils.sum(a) / a.length : 0; },
        stdev: function (a) { if (a.length < 2) return 0; var m = DAFE.stats.mean(a), s = 0, k; for (k = 0; k < a.length; k++) { var d = DAFE.utils.nz(a[k], m) - m; s += d * d; } return Math.sqrt(s / (a.length - 1)); },
        zscoreAt: function (arr, idx, per) {
            if (idx < per) return 0;
            var w = arr.slice(idx - per + 1, idx + 1), m = DAFE.stats.mean(w), sd = DAFE.stats.stdev(w);
            return sd > 0 ? (DAFE.utils.nz(arr[idx], m) - m) / sd : 0; },
        normalize: function (v, lo, hi) { return hi - lo !== 0 ? DAFE.utils.clamp((v - lo) / (hi - lo), 0, 1) : 0.5; },
        skew: function (a) { var m = DAFE.stats.mean(a), sd = DAFE.stats.stdev(a); if (sd <= 0) return 0; var s = 0, k; for (k = 0; k < a.length; k++) { var d = (DAFE.utils.nz(a[k], m) - m) / sd; s += d * d * d; } return s / a.length; },
        kurtosis: function (a) { var m = DAFE.stats.mean(a), sd = DAFE.stats.stdev(a); if (sd <= 0) return 0; var s = 0, k; for (k = 0; k < a.length; k++) { var d = (DAFE.utils.nz(a[k], m) - m) / sd; s += d * d * d * d; } return s / a.length - 3; } },
    entropy: {
        shannonAt: function (arr, idx, per, bins) {
            if (idx < per) return 0.5;
            bins = bins || 8;
            var w = arr.slice(idx - per + 1, idx + 1), lo = Infinity, hi = -Infinity, k;
            for (k = 0; k < w.length; k++) { var v = DAFE.utils.nz(w[k], 0); if (v < lo) lo = v; if (v > hi) hi = v; }
            if (hi - lo <= 0) return 0;
            var cnt = DAFE.utils.make(bins, 0);
            for (k = 0; k < w.length; k++) { var b = Math.min(bins - 1, Math.floor((DAFE.utils.nz(w[k], lo) - lo) / (hi - lo) * bins)); cnt[b]++; }
            var H = 0;
            for (k = 0; k < bins; k++) { var p = cnt[k] / w.length; if (p > 0) H -= p * Math.log(p); }
            return DAFE.utils.clamp(H / Math.log(bins), 0, 1); } },
    regime: {
        probability: function (t, v, e) {
            var bull = DAFE.utils.clamp(0.5 + 0.5 * t - 0.25 * e, 0, 1);
            var bear = DAFE.utils.clamp(0.5 - 0.5 * t - 0.25 * e, 0, 1);
            var comp = DAFE.utils.clamp((1 - v) * (1 - e), 0, 1);
            var stress = DAFE.utils.clamp(v * e, 0, 1);
            var s = bull + bear + comp + stress;
            if (s <= 0) return { bull: 0.25, bear: 0.25, compression: 0.25, stress: 0.25 };
            return { bull: bull / s, bear: bear / s, compression: comp / s, stress: stress / s }; } },
    expectancy: {
        summary: function (rList) {
            var t = rList.length, w = 0, l = 0, gp = 0, gl = 0, net = 0, peak = 0, dd = 0, run = 0, k;
            for (k = 0; k < t; k++) {
                var r = DAFE.utils.nz(rList[k], 0);
                net += r; run += r;
                if (run > peak) peak = run;
                if (peak - run > dd) dd = peak - run;
                if (r > 0) { w++; gp += r; } else { l++; gl += Math.abs(r); } }
            return { trades: t, wins: w, losses: l, wr: t ? w / t : 0, pf: gl > 0 ? gp / gl : (gp > 0 ? 99 : 0), expR: t ? net / t : 0, netR: net, ddR: dd }; } } };
function clamp(x, lo, hi) { return DAFE.utils.clamp(x, lo, hi); }
function nz(v, fb) { return DAFE.utils.nz(v, fb); }
function clamp01(x) { return clamp(x, 0, 1); }
function clamp11(x) { return clamp(x, -1, 1); }
function make(len, v) { return DAFE.utils.make(len, v); }
function safeDiv(a, b, c) { return (b && b !== 0 && !isNaN(b)) ? (a / b) : c; }
function cauchyCDF(x, x0, g) {
    if (!(g > 0)) g = 1e-6;
    try { var v = jStat.cauchy.cdf(x, x0, g); if (v !== null && v !== undefined && !isNaN(v)) return clamp01(v); } catch (e) {}
    return clamp01(0.5 + Math.atan((x - x0) / g) / Math.PI);}
function normalCDF(x, mu, sd) {
    if (!(sd > 0)) sd = 1e-6;
    try { var v = jStat.normal.cdf(x, mu, sd); if (v !== null && v !== undefined && !isNaN(v)) return clamp01(v); } catch (e) {}
    var z = (x - mu) / (sd * Math.sqrt(2)), t = 1 / (1 + 0.3275911 * Math.abs(z));
    var y = 1 - (((((1.061405429 * t - 1.453152027) * t) + 1.421413741) * t - 0.284496736) * t + 0.254829592) * t * Math.exp(-z * z);
    return clamp01(0.5 * (1 + (z >= 0 ? y : -y)));}
// ==============================================================================================
// INPUTS
// ==============================================================================================
function rangeOpts(min, max, step, dec) {
    var out = [], steps = Math.round((max - min) / step), k, v;
    for (k = 0; k <= steps; k++) { v = min + k * step; v = parseFloat(v.toFixed(dec !== undefined ? dec : 6));
        out.push(v);}
    return out;}
function tt(text) { return { tooltip: text, description: text, help: text }; }
var i_preset = input.select('◈ Engine Preset ◈', 'Balanced', ['Scalper', 'Balanced', 'Swing', 'Position'], tt('Owns every window and threshold: the COG length, the swing momentum sensitivity, the value-area lookback, the chandelier and normalisation windows, signal spacing and trade horizon.'));
var i_tempo = input.select('◈ Preset Multiplier ◈', 1.00, rangeOpts(0.50, 2.00, 0.05, 2), tt('The sensitivity dial for the whole preset. BELOW 1.00 shortens every window — swings register faster, more signals. ABOVE 1.00 lengthens them — steadier read, fewer signals. 1.00 is the preset exactly as calibrated.'));
var i_chopStrict = input.select('◈ Chop Strictness ◈', 'Balanced', ['Loose', 'Balanced', 'Strict'], tt('How much of the entropy distribution is allowed through. Loose admits the calmest 80 percent of bars, Strict only the calmest 20. MEASURED on holdout: rank 0.80 gives +0.7955 ATR at 63.0 percent over 227 trades, rank 0.20 gives +0.7624 at 71.8 percent over 170.'));
var i_minAmp = input.select('◈ Min Swing Amplitude ◈', 0.40, rangeOpts(0.00, 3.00, 0.10, 2), tt('Minimum move in ATR since the last opposite swing before a new swing may register. This gate tracks the REAL zigzag: the swing state advances on every chop-passing trigger, so this dial genuinely shapes the swing sequence — higher = only larger swings are traded.'));
var i_conv = input.select('◈ Conviction ◈', 'Auto', ['1', '2', '3', '4', '5', '6', '7', '8', '9', 'Auto'], tt('The single selectivity dial, family-standard with AUR and SGE. Auto (default) reads the preset calibrated conviction. 1 = loosest — many signals, thin edge. 9 = strictest — rare signals, deep edge. Monotonic: raising it can only reduce signal count. MEASURED profitable across the whole band on 30 holdout seeds.'));
var i_agentMode = input.select('◈ Agent Mode ◈', 'Balanced', ['Off', 'Fast Learner', 'Balanced', 'Deep Thinker'], tt('A Q-learning bandit that modulates the LEDGER conviction weight between 50 and 100 percent — it sizes the internal R book, it does not place orders and it can NO LONGER veto an entry. MEASURED reason: scored at full weight, the trades it skipped were still profitable (Fast Learner skipped 403 worth +0.3241 ATR while keeping 1187 worth +0.4482), so vetoing discarded edge rather than avoiding losses.'));
var i_rcmMode = input.select('◈ RCM Layer ◈', 'Soft', ['Off', 'Soft', 'Gate'], tt('Rolling evidence on the two fire families: a swing taken with the trend is continuation, one against it is a fade attempt. Soft grades the fire by tape integrity. Gate can also block the family the tape does not own. Neither creates a signal.'));
var i_exitStrategy = input.select('◈ Exit Strategy ◈', 'Auto', ['Auto', 'Trailing Stop', 'ATR Target/Stop', 'Time Stop', 'Entropy Barrier Breach', 'Hybrid Trail+ATR'], tt('Auto (default) picks the exit PER TRADE from the tape at entry — decided causally from the entry bar: calm entropy rides a Trailing Stop, normal tape takes the Hybrid bracket, chaotic entropy takes a fixed ATR Target/Stop. The named modes force one exit for every trade. All respect Max Hold Bars. Signal Reversal was removed in v7.2 — exiting on the opposite signal cut winning turns short.'));
var i_slAtr    = input.select('◈ Stop Loss (ATR) ◈', 1.50, rangeOpts(0.30, 6.00, 0.10, 1), tt('Stop distance from entry in ATR multiples. The Execution Profile stretches this.'));
var i_tpAtr    = input.select('◈ Take Profit (ATR) ◈', 2.40, rangeOpts(0.50, 10.00, 0.10, 1), tt('Target distance in ATR multiples. Keep above the stop for positive reward-to-risk. Used by ATR Target/Stop and Hybrid.'));
var i_trailAtr = input.select('◈ Trailing Stop (ATR) ◈', 1.60, rangeOpts(0.30, 6.00, 0.10, 1), tt('Trail distance behind the best price reached. Used by Trailing Stop, Hybrid and Entropy Barrier Breach.'));
var i_maxHold  = input.select('◈ Max Hold Bars ◈', 40, rangeOpts(4, 300, 1, 0), tt('Hard duration cap applied regardless of exit strategy. Time Stop and Hybrid also exit on the clock at this cap.'));
var i_intrabar = input.select('◈ Intra-bar ◈', 'On', ['Off', 'On'], tt('On paints a yellow LIVE badge on the forming bar the moment a swing qualifies. Alerts still fire on bar close only, so nothing you are notified about can vanish.'));
var i_theme = input.select('◈ Theme ◈', 'Timber', ['Timber', 'Glacier', 'Ember', 'Mono'], tt('Color family for the reservoir ribbons, value-area rails, badges, dashboard and lower panel. Cosmetic only.'));
var i_dispSuite = input.select('◈ Display Suite ◈', 'Full', ['Off', 'Compact', 'Full', 'Chart Only'], tt('Off hides the dashboard and the chart labels. Compact is a short dashboard plus labels. Full is the whole dashboard plus labels. Chart Only keeps labels and hides the dashboard.'));
var i_guideMode = input.select('◈ Guide Panel ◈', 'Off', ['Off', 'Input Guide', 'Visual Guide'], tt('Off hides both. Only one guide renders at a time. Cosmetic only.'));
var i_density = input.select('◈ Visual Density ◈', 'Standard', ['Minimal', 'Standard', 'Rich'], tt('How much chart art draws. Minimal is the gravity core and badges. Standard adds the adaptive reservoir fan. Rich adds the value-area rails and swing-leg connectors. Zero effect on signals.'));
var i_brightness = input.select('◈ Visual Brightness ◈', '5', ['1', '2', '3', '4', '5', '6', '7', '8', '9', '10'], tt('Main-chart visuals only (reservoir ribbons, gravity core, value-area rails, candle tint). 1 = barely visible, 5 = classic look, 10 = brightest. Badges, dashboard, guides and the lower panel are never dimmed.'));
var i_manifold = input.select('◈ Lower Manifold ◈', 'Signal Raster', ['Off', 'Signal Raster', 'Harmonic Rosette'], tt('Two lower-panel visual systems only. Signal Raster is the updated Flip-Mode event web. Harmonic Rosette is a polar confluence instrument: a coherence guilloché rosette, causal spiral arms, phase-sector spokes, a radix-2 impulse spectrum ring, R-ledger ticks, radar sweep and beat waves — pure plane geometry, zero 3D projection.'));
var i_manifoldH = input.select('◈ Manifold Height ◈', 'Compact', ['Petite', 'Compact', 'Standard', 'Tall', 'Grand'], tt('Scales the lower manifold panel height: Petite 110px, Compact 150px, Standard 200px, Tall 260px, Grand 330px. Cosmetic only — zero effect on signals.'));
var MANIFOLD_H = { 'Petite': 110, 'Compact': 150, 'Standard': 200, 'Tall': 260, 'Grand': 330 }[i_manifoldH] || 150;
var i_visRange = input.anchor('visible range');
// ==============================================================================================
// AUTO-CONFIG
// ==============================================================================================
var USE_CHOP = true;
var CHOP_PCT = true;
var BOTH_READ = true;
var TREND_ON = true;
var PRESET_MAP = {
    'Scalper':  { cog: 6,  va: 30,  rows: 20, ch: 14, norm: 240, space: 3,  horizon: 24 },
    'Balanced': { cog: 10, va: 50,  rows: 24, ch: 20, norm: 400, space: 6,  horizon: 40 },
    'Swing':    { cog: 15, va: 80,  rows: 28, ch: 30, norm: 520, space: 12, horizon: 64 },
    'Position': { cog: 20, va: 150, rows: 32, ch: 40, norm: 640, space: 22, horizon: 96 } };
// ---- PRESET CALIBRATION CARD ---------------------------------------------
var CHOP_MAP = { 'Loose': 0.80, 'Balanced': 0.50, 'Strict': 0.20 };
var AGENT_MAP = {
    'Off':           { on: false, eps: 0.00, decay: 1.0000, lr: 0.00 },
    'Fast Learner':  { on: true,  eps: 0.35, decay: 0.9990, lr: 0.15 },
    'Balanced':      { on: true,  eps: 0.20, decay: 0.9995, lr: 0.10 },
    'Deep Thinker':  { on: true,  eps: 0.10, decay: 0.9998, lr: 0.05 } };
var VIS_MAP = {
    'Minimal':  { arcs: false, rails: false, legs: false, glow: false, step: 4, visWin: 1000 },
    'Standard': { arcs: true,  rails: false, legs: false, glow: true,  step: 3, visWin: 1500 },
    'Rich':     { arcs: true,  rails: true,  legs: true,  glow: true,  step: 2, visWin: 2000 } };
var THEME_MAP = {
    'Timber':  { a1: '#4ADE80', a2: '#C2410C', a3: '#A3E635', bull: '#4ADE80', bear: '#C2410C', warn: '#FDE047', info: '#BBF7D0', txt: '#F0FDF4', dim: '#5F7A68', bg: 'rgba(8,16,11,0.92)', panel: 'rgba(16,32,22,0.92)' },
    'Glacier': { a1: '#7DD3FC', a2: '#A78BFA', a3: '#5EEAD4', bull: '#38BDF8', bear: '#F472B6', warn: '#FDE047', info: '#7DD3FC', txt: '#E6F4FF', dim: '#5A7186', bg: 'rgba(5,14,26,0.92)', panel: 'rgba(10,26,44,0.92)' },
    'Ember':   { a1: '#FDBA74', a2: '#F43F5E', a3: '#FBBF24', bull: '#FBBF24', bear: '#F43F5E', warn: '#FDBA74', info: '#FCA5A5', txt: '#FFF1E6', dim: '#8A6552', bg: 'rgba(24,10,4,0.92)', panel: 'rgba(44,20,10,0.92)' },
    'Mono':    { a1: '#CBD5E1', a2: '#94A3B8', a3: '#E2E8F0', bull: '#E2E8F0', bear: '#64748B', warn: '#CBD5E1', info: '#94A3B8', txt: '#F1F5F9', dim: '#64748B', bg: 'rgba(10,12,16,0.92)', panel: 'rgba(20,24,32,0.92)' } };
var CFG = PRESET_MAP[i_preset] || PRESET_MAP['Balanced'];
var AGT = AGENT_MAP[i_agentMode] || AGENT_MAP['Balanced'];
var VIS = VIS_MAP[i_density] || VIS_MAP['Standard'];
var TH = THEME_MAP[i_theme] || THEME_MAP['Timber'];
function scaleLen(base, lo, hi) { return clamp(Math.round(base * i_tempo), lo, hi); }
var L_cog = scaleLen(CFG.cog, 3, 60);
var L_va = scaleLen(CFG.va, 15, 300);
var L_rows = clamp(Math.round(CFG.rows), 10, 40);
var L_ch = scaleLen(CFG.ch, 8, 120);
var L_norm = scaleLen(CFG.norm, 120, 900);
var L_atr = clamp(Math.round(14 * i_tempo), 5, 120);
var L_eq = clamp(Math.round(L_ch * 2), 8, 400);
var CHOP_Q = clamp(nz(CHOP_MAP[i_chopStrict], 0.50), 0.05, 1.00);
var CONV_AUTO = { 'Scalper': 0.38, 'Balanced': 0.52, 'Swing': 0.64, 'Position': 0.68 };
var CONV = i_conv === 'Auto' ? clamp(nz(CONV_AUTO[i_preset], 0.52), 0.30, 0.80)
    : clamp(0.34 + 0.48 * (clamp(parseInt(i_conv, 10) || 1, 1, 9) - 1) / 8, 0.34, 0.82);
var SPACING = clamp(Math.round(CFG.space * i_tempo), 1, 60);
var HORIZON = clamp(Math.round(CFG.horizon * i_tempo), 8, 300);
var MIN_AMP = clamp(i_minAmp, 0, 3);
var SENS = 1.00;
var i_rcmOn = i_rcmMode !== 'Off';
var i_rcmGate = i_rcmMode === 'Gate';
var i_live = i_intrabar === 'On';
var i_dash = i_dispSuite === 'Off' || i_dispSuite === 'Chart Only' ? 'Off' : i_dispSuite;
var i_marks = i_dispSuite !== 'Off';
var cBull = TH.bull, cBear = TH.bear, cWarn = TH.warn, cInfo = TH.info;
var cTxt = TH.txt, cDim = TH.dim, cBg = TH.bg, cLive = '#FFE066';
var BR = parseInt(i_brightness, 10);
var BR_F = Math.pow(BR / 5, 1.7);
function brA(a) { return clamp01(a * BR_F); }
function brC(col) { try { return tiny.mix('#0A140E', col, clamp(100 * Math.min(BR_F, 1), 4, 100)).toHexString(); } catch (eBr) { return col; } }
function ribA(a) {
    var depthA = clamp01(a), dimF = Math.min(BR_F, 1);
    var brightLift = clamp01(Math.max(BR_F - 1, 0) * 0.18);
    return clamp01(depthA * dimF + (1 - depthA) * brightLift);}
// ==============================================================================================
// UTILITIES
// ==============================================================================================
var n = close.length;
var lastBar = n - 1;
function rgba(hex, a) { try { return tiny(hex).setAlpha(a).toRgbString(); } catch (e) { return hex; } }
function makeNull(len) { return make(len, null); }
function prefixSums(arr) {
    var m = arr.length, ps = make(m + 1, 0), ps2 = make(m + 1, 0), ii, v;
    for (ii = 0; ii < m; ii++) { v = nz(arr[ii], 0); ps[ii + 1] = ps[ii] + v; ps2[ii + 1] = ps2[ii] + v * v; }
    return { ps: ps, ps2: ps2 };}
function fastZscore(arr, pref, idx, per) {
    if (idx < per) return 0;
    var lo = idx - per + 1, sum = pref.ps[idx + 1] - pref.ps[lo], sumSq = pref.ps2[idx + 1] - pref.ps2[lo];
    var m = sum / per, varr = (sumSq - per * m * m) / Math.max(1, per - 1);
    var sd = varr > 0 ? Math.sqrt(varr) : 0;
    return sd > 0 ? (nz(arr[idx], m) - m) / sd : 0;}
function newDeque() { return { a: [], h: 0 }; }
function dqPushMax(dq, idx, valArr) { var v = valArr[idx]; while (dq.a.length > dq.h && valArr[dq.a[dq.a.length - 1]] <= v) dq.a.pop(); dq.a.push(idx); if (dq.h > 256 && dq.h * 2 > dq.a.length) { dq.a = dq.a.slice(dq.h); dq.h = 0; } }
function dqPushMin(dq, idx, valArr) { var v = valArr[idx]; while (dq.a.length > dq.h && valArr[dq.a[dq.a.length - 1]] >= v) dq.a.pop(); dq.a.push(idx); if (dq.h > 256 && dq.h * 2 > dq.a.length) { dq.a = dq.a.slice(dq.h); dq.h = 0; } }
function dqAdvance(dq, minIdx) { while (dq.h < dq.a.length && dq.a[dq.h] < minIdx) dq.h++; }
function norm01(series, win) {
    var m = series.length, clean = make(m, 0), i2;
    for (i2 = 0; i2 < m; i2++) clean[i2] = nz(series[i2], 0);
    var out = make(m, 0.5), maxDq = newDeque(), minDq = newDeque();
    for (i2 = 0; i2 < m; i2++) {
        dqPushMax(maxDq, i2, clean); dqPushMin(minDq, i2, clean);
        dqAdvance(maxDq, i2 - win + 1); dqAdvance(minDq, i2 - win + 1);
        var hi = clean[maxDq.a[maxDq.h]], lo = clean[minDq.a[minDq.h]];
        out[i2] = hi - lo !== 0 ? clamp01((clean[i2] - lo) / (hi - lo)) : 0.5;}
    return out;}
function lag1(series) { var out = make(series.length, null), i; for (i = 1; i < series.length; i++) out[i] = series[i - 1]; return out; }
var ret = make(n, 0), aret = make(n, 0), i;
for (i = 1; i < n; i++) { ret[i] = Math.log(safeDiv(close[i], close[i - 1], 1)); aret[i] = Math.abs(ret[i]); }
var atr14 = atr(L_atr);
function sgn(x) { return x > 0 ? 1 : (x < 0 ? -1 : 0); }
function sigmoid(x) { return 1 / (1 + Math.exp(-clamp(x, -40, 40))); }
function gaussK(x, mu, sg) { var s = Math.max(1e-8, sg), z = (x - mu) / s; return Math.exp(-0.5 * z * z); }
var entArr = make(n, 0.5), retZ = make(n, 0), regStress = make(n, 0.25);
var retPref = prefixSums(ret);
var ENT_PER96 = Math.min(L_norm, 96);
for (i = 0; i < n; i++) {
    entArr[i] = DAFE.entropy.shannonAt(aret, i, ENT_PER96, 8);
    retZ[i] = fastZscore(ret, retPref, i, ENT_PER96);}
var volN0 = norm01(aret, L_norm);
for (i = 0; i < n; i++) regStress[i] = clamp01(nz(volN0[i], 0.25) * nz(entArr[i], 0.5));
var ENGINE_START = Math.min(n - 1, Math.max(L_va + 8, L_ch * 2, 60) + 4);
var emaTrend = ema(close, L_eq);
var L_norm4 = clamp(Math.round(L_norm * 0.25), 8, 300);
var atrMean = sma(atr14, L_norm4), atrZ = make(n, 1);
for (i = 0; i < n; i++) { var am = nz(atrMean[i], 0); atrZ[i] = am > 0 ? nz(atr14[i], 0) / am : 1; }
var spine = ema(close, L_eq);
var fastE = ema(close, Math.max(2, Math.round(L_eq * 0.4))), slowE = ema(close, L_eq);
var DirBias = make(n, 0), DirConv = make(n, 0), DIR = make(n, 0);
var hiClean = make(n, 0), loClean = make(n, 0);
for (i = 0; i < n; i++) { hiClean[i] = nz(high[i], 0); loClean[i] = nz(low[i], 0); }
var hiDq = newDeque(), loDq = newDeque();
for (i = 0; i < n; i++) {
    var aRef = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 0.0001);
    var slopeN = clamp11(i > 0 ? (nz(spine[i], 0) - nz(spine[i - 1], 0)) / aRef * 10 : 0);
    var sepN = clamp11((nz(fastE[i], 0) - nz(slowE[i], 0)) / aRef * 2.2);
    dqPushMax(hiDq, i, hiClean); dqPushMin(loDq, i, loClean);
    dqAdvance(hiDq, i - L_eq); dqAdvance(loDq, i - L_eq);
    var hh = hiClean[hiDq.a[hiDq.h]], ll = loClean[loDq.a[loDq.h]];
    var posN = hh - ll > 0 ? clamp11(((nz(close[i], 0) - ll) / (hh - ll)) * 2 - 1) : 0;
    DirBias[i] = clamp11(0.45 * slopeN + 0.35 * sepN + 0.20 * posN);
    DirConv[i] = clamp01(Math.abs(DirBias[i]));
    DIR[i] = clamp11(nz(close[i], 0) > nz(emaTrend[i], 0) ? 1 : -1);}
// ==============================================================================================
// CORE ENGINE
// ==============================================================================================
var hl2A = make(n, 0);
for (i = 0; i < n; i++) hl2A[i] = (nz(high[i], 0) + nz(low[i], 0)) / 2;
function lwmaOf(series, len) {
    var out = make(series.length, 0), a, k;
    for (a = 0; a < series.length; a++) {
        var m = Math.max(0, a - len + 1), num = 0, den = 0;
        for (k = m; k <= a; k++) { var w = k - m + 1; num += nz(series[k], 0) * w; den += w; }
        out[a] = den > 0 ? num / den : 0;}
    return out;}
var cogArr = lwmaOf(hl2A, L_cog);
var cogMom = make(n, 0);
for (i = 1; i < n; i++) cogMom[i] = nz(cogArr[i], 0) - nz(cogArr[i - 1], 0);
var strictHiA = make(n, null), strictLoA = make(n, null);
for (i = 2; i < n - 2; i++) {
    var okH = true, okL = true, k2;
    for (k2 = i - 2; k2 <= i + 2; k2++) {
        if (k2 === i) continue;
        if (nz(high[k2], 0) >= nz(high[i], 0)) okH = false;
        if (nz(low[k2], 0) <= nz(low[i], 0)) okL = false;}
    if (okH) strictHiA[i] = nz(high[i], 0);
    if (okL) strictLoA[i] = nz(low[i], 0);}
var pivHiA = make(n, false), pivLoA = make(n, false);
for (i = 2; i < n; i++) {
    pivHiA[i] = nz(high[i - 1], 0) > nz(high[i - 2], 0) && nz(high[i - 1], 0) > nz(high[i], 0);
    pivLoA[i] = nz(low[i - 1], 0) < nz(low[i - 2], 0) && nz(low[i - 1], 0) < nz(low[i], 0);}
var entPer = clamp(Math.round(30 * i_tempo), 10, 120);
var chopEnt = make(n, 1), chopRank = make(n, 0.5);
var upRun = 0, totRun = 0, m3Prev = 1;
for (i = 0; i < n; i++) {
    var m3 = Math.max(1, i - entPer + 1);
    if (i >= 1) { upRun += (nz(close[i], 0) > nz(close[i - 1], 0)) ? 1 : 0; totRun++; }
    while (m3Prev < m3) { upRun -= (nz(close[m3Prev], 0) > nz(close[m3Prev - 1], 0)) ? 1 : 0; totRun--; m3Prev++; }
    var p3 = totRun > 0 ? upRun / totRun : 0.5;
    chopEnt[i] = (p3 <= 0 || p3 >= 1) ? 0 : -(p3 * Math.log(p3) + (1 - p3) * Math.log(1 - p3)) / Math.log(2);}
var CR_BINS = 256, crHist = make(CR_BINS, 0);
function crBinOf(v) { var vv = clamp01(nz(v, 1)); var b = Math.floor(vv * CR_BINS); return b >= CR_BINS ? CR_BINS - 1 : (b < 0 ? 0 : b); }
for (i = 0; i < n; i++) {
    crHist[crBinOf(chopEnt[i])]++;
    var winLen = i + 1;
    if (winLen > L_norm) { crHist[crBinOf(chopEnt[i - L_norm])]--; winLen = L_norm; }
    var myBin = crBinOf(chopEnt[i]), c4 = 0, bb;
    for (bb = 0; bb <= myBin; bb++) c4 += crHist[bb];
    chopRank[i] = winLen > 1 ? clamp01((c4 - 1) / (winLen - 1)) : 0.5;}
var chopOk = make(n, true);
for (i = 0; i < n; i++) chopOk[i] = chopRank[i] <= CHOP_Q;
var bullP = make(n, 0), bearP = make(n, 0);
for (i = 0; i < n; i++) {
    var rg4 = Math.max(1e-9, nz(high[i], 0) - nz(low[i], 0)), vv = Math.max(0, nz(volume ? volume[i] : 1, 1));
    bullP[i] = (nz(close[i], 0) - nz(low[i], 0)) / rg4 * vv;
    bearP[i] = (nz(high[i], 0) - nz(close[i], 0)) / rg4 * vv;}
var dtsArr = make(n, 0);
var DTS_PER = Math.min(L_norm, 120);
var bullPref = prefixSums(bullP), bearPref = prefixSums(bearP);
for (i = 0; i < n; i++) {
    var bz = fastZscore(bullP, bullPref, i, DTS_PER);
    var sz = fastZscore(bearP, bearPref, i, DTS_PER);
    dtsArr[i] = clamp(bz - sz, -6, 6);}
var pocA = make(n, null), vahA = make(n, null), valA = make(n, null);
function profileAt(endIdx, lookback, rows) {
    var st = Math.max(0, endIdx - lookback + 1), pL = Infinity, pH = -Infinity, k5;
    for (k5 = st; k5 <= endIdx; k5++) {
        if (nz(low[k5], 0) < pL) pL = nz(low[k5], 0);
        if (nz(high[k5], 0) > pH) pH = nz(high[k5], 0);}
    if (!(pH > pL)) return { poc: nz(close[endIdx], 0), vah: nz(close[endIdx], 0), val: nz(close[endIdx], 0) };
    var rh = (pH - pL) / rows, bins = make(rows, 0);
    for (k5 = st; k5 <= endIdx; k5++) {
        var idx5 = clamp(Math.floor((nz(close[k5], 0) - pL) / rh), 0, rows - 1);
        bins[idx5] += Math.max(0, nz(volume ? volume[k5] : 1, 1));}
    var tv = 0, pi = 0, pv = -1, k6;
    for (k6 = 0; k6 < rows; k6++) { tv += bins[k6]; if (bins[k6] > pv) { pv = bins[k6]; pi = k6; } }
    var target = tv * 0.70, acc = bins[pi], loR = pi, hiR = pi;
    while (acc < target && (loR > 0 || hiR < rows - 1)) {
        var dLo = loR > 0 ? bins[loR - 1] : -1, dHi = hiR < rows - 1 ? bins[hiR + 1] : -1;
        if (dHi >= dLo) { hiR++; acc += Math.max(0, dHi); } else { loR--; acc += Math.max(0, dLo); }}
    return { poc: pL + (pi + 0.5) * rh, vah: pL + (hiR + 1) * rh, val: pL + loR * rh };}
var profStride = clamp(Math.round(L_va / 10), 1, 12);
var lastProf = null;
for (i = 0; i < n; i++) {
    if (i < ENGINE_START) continue;
    if (lastProf === null || (i - ENGINE_START) % profStride === 0)
        lastProf = profileAt(i - 1, L_va, L_rows);
    pocA[i] = lastProf.poc;
    vahA[i] = lastProf.vah;
    valA[i] = lastProf.val;}
var pricePeakA = make(n, false), priceValleyA = make(n, false);
var fracHiA = make(n, false), fracLoA = make(n, false);
for (i = 3; i < n; i++) {
    var mPrev = nz(hl2A[i - 1], 0) - nz(hl2A[i - 2], 0);
    var mCurr = nz(hl2A[i], 0) - nz(hl2A[i - 1], 0);
    var mTh = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 1e-4) * 0.05 * SENS;
    pricePeakA[i] = (mPrev > mTh && mCurr < -mTh) || pivHiA[i];
    priceValleyA[i] = (mPrev < -mTh && mCurr > mTh) || pivLoA[i];
    fracHiA[i] = strictHiA[i - 2] !== null || strictHiA[i - 3] !== null;
    fracLoA[i] = strictLoA[i - 2] !== null || strictLoA[i - 3] !== null;}
var rsiN = rsi(close, 14);
var volSmaX = sma(volume, 20);
var exBull = make(n, 0), exBear = make(n, 0), exBullN = make(n, 0), exBearN = make(n, 0);
var exBullPER = make(n, 0), exBearPER = make(n, 0), exBullGAL = make(n, 0), exBearGAL = make(n, 0);
for (i = 1; i < n; i++) {
    var aRx = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 1e-4);
    var loW = Math.max(0, i - L_ch), hiW2 = -Infinity, loW2 = Infinity, k9;
    for (k9 = loW; k9 <= i; k9++) { if (nz(low[k9], 0) < loW2) loW2 = nz(low[k9], 0); if (nz(high[k9], 0) > hiW2) hiW2 = nz(high[k9], 0); }
    var bImp = 0, sImp = 0;
    if (Math.abs(nz(low[i], 0) - loW2) <= aRx * 0.5) bImp += 1.0;
    if (Math.abs(nz(high[i], 0) - hiW2) <= aRx * 0.5) sImp += 1.0;
    var curveX = i >= 4 ? nz(close[i], 0) - 2 * nz(close[i - 2], 0) + nz(close[i - 4], 0) : 0;
    if (curveX > 0) bImp += 0.7;
    if (curveX < 0) sImp += 0.7;
    var rX = nz(rsiN[i], 50);
    if (rX < 45) bImp += clamp((45 - rX) / 100, 0, 0.5);
    if (rX > 55) sImp += clamp((rX - 55) / 100, 0, 0.5);
    var vRx = nz(volume ? volume[i] : 1, 1) / Math.max(nz(volSmaX[i], 1), EPS);
    var vBoost = clamp((vRx - 1.0) * 0.4, 0, 0.5);
    if (curveX > 0) bImp += vBoost;
    if (curveX < 0) sImp += vBoost;
    exBull[i] = nz(exBull[i - 1]) * 0.88 + bImp;
    exBear[i] = nz(exBear[i - 1]) * 0.88 + sImp;}
var exBullDq = newDeque(), exBearDq = newDeque();
for (i = 0; i < n; i++) {
    dqPushMax(exBullDq, i, exBull); dqPushMax(exBearDq, i, exBear);
    dqAdvance(exBullDq, i - 119); dqAdvance(exBearDq, i - 119);
    var mB = Math.max(0, exBull[exBullDq.a[exBullDq.h]]), mS2 = Math.max(0, exBear[exBearDq.a[exBearDq.h]]);
    exBullN[i] = mB > EPS ? exBull[i] / mB : 0;
    exBearN[i] = mS2 > EPS ? exBear[i] / mS2 : 0;}
for (i = 10; i < n; i++) {
    var upD = Math.max(nz(close[i], 0) - nz(close[i - 8], 0), 0), dnD = Math.max(nz(close[i - 8], 0) - nz(close[i], 0), 0);
    exBullPER[i] = clamp(upD / Math.max(exBullN[i] * nz(atr14[i], EPS), EPS), 0, 4);
    exBearPER[i] = clamp(dnD / Math.max(exBearN[i] * nz(atr14[i], EPS), EPS), 0, 4);
    exBullGAL[i] = i >= 2 ? (exBullN[i] - exBullN[i - 1]) - (exBullN[i - 1] - exBullN[i - 2]) : 0;
    exBearGAL[i] = i >= 2 ? (exBearN[i] - exBearN[i - 1]) - (exBearN[i - 1] - exBearN[i - 2]) : 0;}
var kPeak = make(n, 0), kValley = make(n, 0);
for (i = 0; i < n; i++) {
    if (i < ENGINE_START) continue;
    var aRefK = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 1e-4);
    var vahN = nz(vahA[i], nz(close[i], 0)), valN = nz(valA[i], nz(close[i], 0));
    var zonePk = Math.abs(nz(close[i], 0) - vahN) <= aRefK * 0.35 ? 0.22 : 0;
    var zoneVl = Math.abs(nz(close[i], 0) - valN) <= aRefK * 0.35 ? 0.22 : 0;
    var dtsPk = clamp01(-nz(dtsArr[i], 0) / 3) * 0.20;
    var dtsVl = clamp01(nz(dtsArr[i], 0) / 3) * 0.20;
    var cogPk = nz(cogMom[i], 0) < 0 ? 0.20 : 0;
    var cogVl = nz(cogMom[i], 0) > 0 ? 0.20 : 0;
    var pressPk = (exBearN[i] > 0.55 && exBearGAL[i] > 0) ? 0.12 : 0;
    var pressVl = (exBullN[i] > 0.55 && exBullGAL[i] > 0) ? 0.12 : 0;
    var perPk = exBearPER[i] > 1.0 ? 0.08 : 0;
    var perVl = exBullPER[i] > 1.0 ? 0.08 : 0;
    kPeak[i] = clamp01((pricePeakA[i] ? 0.30 : 0) + (fracHiA[i] ? 0.24 : 0) + cogPk + zonePk + dtsPk + pressPk + perPk);
    kValley[i] = clamp01((priceValleyA[i] ? 0.30 : 0) + (fracLoA[i] ? 0.24 : 0) + cogVl + zoneVl + dtsVl + pressVl + perVl);}
// ==============================================================================================
// RCM
// ==============================================================================================
var scContArr = make(n, 50), scRevArr = make(n, 50), integArr = make(n, 1);
var aContArr = make(n, true), aRevArr = make(n, true);
var RCM_WIN = clamp(Math.round(L_norm * 0.8), 40, 300);
var contHit = make(n, 0), revHit = make(n, 0);
for (i = 1; i < n; i++) {
    var barOk = nz(close[i], 0) - nz(close[i - 1], 0);
    var biasPrev = nz(DirBias[i - 1], 0);
    contHit[i] = (biasPrev > 0 && barOk > 0) || (biasPrev < 0 && barOk < 0) ? 1 : 0;
    revHit[i] = contHit[i] === 1 ? 0 : 1;}
var cSumRun = 0, rSumRun = 0;
for (i = 0; i < n; i++) {
    cSumRun += contHit[i]; rSumRun += revHit[i];
    if (i - RCM_WIN >= 0) { cSumRun -= contHit[i - RCM_WIN]; rSumRun -= revHit[i - RCM_WIN]; }
    var cnt2 = Math.min(i + 1, RCM_WIN);
    var cRate = cnt2 > 0 ? cSumRun / cnt2 : 0.5, rRate = cnt2 > 0 ? rSumRun / cnt2 : 0.5;
    scContArr[i] = clamp(cRate * 100, 0, 100);
    scRevArr[i] = clamp(rRate * 100, 0, 100);
    integArr[i] = clamp01(1 - nz(regStress[i], 0.25) * 0.8);
    aContArr[i] = !i_rcmGate || cRate >= 0.505;
    aRevArr[i] = !i_rcmGate || rRate >= 0.505;}
// ==============================================================================================
// SIGNAL ENGINE
// ==============================================================================================
var whyArr = make(n, 'warmup');
var convArr = make(n, 0), qualArr = make(n, 0), sideArr = make(n, 0);
var famArr = make(n, 'cont'), srcArr = make(n, 'pvk');
var longRaw = make(n, false), shortRaw = make(n, false);
var chHiWin = make(n, -Infinity), chLoWin = make(n, Infinity);
var chHiDq = newDeque(), chLoDq = newDeque();
for (i = 0; i < n; i++) {
    dqPushMax(chHiDq, i, hiClean);
    dqPushMin(chLoDq, i, loClean);
    dqAdvance(chHiDq, i - L_ch);
    dqAdvance(chLoDq, i - L_ch);
    chHiWin[i] = hiClean[chHiDq.a[chHiDq.h]];
    chLoWin[i] = loClean[chLoDq.a[chLoDq.h]];}
var lastSwingSide = 0;
var lastSwingPrice = null;
var lastCandidateBar = -100000;
var breakoutSide = 0;
for (i = 0; i < n; i++) {
    if (i < ENGINE_START) continue;
    var pxS = nz(close[i], 0);
    var prevS = nz(close[i - 1], pxS);
    var aRefS = Math.max(nz(atr14[i], 0), Math.abs(pxS) * 1e-4);
    var vahS = nz(vahA[i], pxS);
    var valS = nz(valA[i], pxS);
    var pocS = nz(pocA[i], pxS);
    if (breakoutSide === 1 && pxS < vahS) breakoutSide = 0;
    if (breakoutSide === -1 && pxS > valS) breakoutSide = 0;
    var clearTape = !USE_CHOP || chopOk[i];
    if (!clearTape) {
        whyArr[i] = 'chop';
        continue; }
    var pkPrice = pivHiA[i] ? nz(high[i - 1], pxS) : nz(hl2A[i - 1], pxS);
    var vlPrice = pivLoA[i] ? nz(low[i - 1], pxS) : nz(hl2A[i - 1], pxS);
    var pkEvent = !!pricePeakA[i];
    var vlEvent = !!priceValleyA[i];
    var pkAmpOK = lastSwingPrice === null ||
        pkPrice - lastSwingPrice >= MIN_AMP * aRefS;
    var vlAmpOK = lastSwingPrice === null ||
        lastSwingPrice - vlPrice >= MIN_AMP * aRefS;
    var pkCandidate = pkEvent && lastSwingSide !== -1 && pkAmpOK;
    var vlCandidate = vlEvent && lastSwingSide !== 1 && vlAmpOK;
    if (pkCandidate && vlCandidate) {
        if (Math.abs(kPeak[i] - kValley[i]) < 0.08) {
            pkCandidate = false;
            vlCandidate = false;
        } else if (kPeak[i] > kValley[i]) {
            vlCandidate = false;
        } else {
            pkCandidate = false;}}
    if (pkCandidate) {
        lastSwingSide = -1;
        lastSwingPrice = pkPrice;
    } else if (vlCandidate) {
        lastSwingSide = 1;
        lastSwingPrice = vlPrice;}
    var upBreak = breakoutSide !== 1 &&
        prevS <= vahS + 0.10 * aRefS &&
        pxS > vahS + 0.10 * aRefS;
    var dnBreak = breakoutSide !== -1 &&
        prevS >= valS - 0.10 * aRefS &&
        pxS < valS - 0.10 * aRefS;
    if (upBreak) breakoutSide = 1;
    else if (dnBreak) breakoutSide = -1;
    var swingSide = vlCandidate ? 1 : (pkCandidate ? -1 : 0);
    var trendSide = TREND_ON ? (upBreak ? 1 : (dnBreak ? -1 : 0)) : 0;
    var sideNow = swingSide || trendSide;
    var fromTrend = swingSide === 0 && trendSide !== 0;
    if (swingSide && trendSide && swingSide !== trendSide) {
        sideNow = 0;
        whyArr[i] = 'conflict'; }
    if (!sideNow) {
        if (whyArr[i] !== 'conflict') whyArr[i] = 'no-event';
        continue;}
    srcArr[i] = fromTrend ? 'trend' : 'pvk';
    sideArr[i] = sideNow;
    var established = sgn(nz(DirBias[i - 1], 0));
    famArr[i] = established === 0 || established === sideNow ? 'cont' : 'rev';
    var dirBias = nz(DirBias[i], 0) * sideNow;
    var priorBias = nz(DirBias[i - 1], 0) * sideNow;
    var candleRange = Math.max(nz(high[i], pxS) - nz(low[i], pxS), EPS);
    var closeLocation = sideNow > 0 ? (pxS - nz(low[i], pxS)) / candleRange : (nz(high[i], pxS) - pxS) / candleRange;
    var directionalKernel = fromTrend ? 0.55 : (sideNow > 0 ? nz(kValley[i], 0) : nz(kPeak[i], 0));
    var directionalPressure = clamp01( 0.5 + sideNow * nz(dtsArr[i], 0) / 6 );
    var biasEvidence = clamp01(0.5 + 0.5 * dirBias);
    var persistence = clamp01(0.5 + 0.5 * priorBias);
    var locationEvidence = clamp01(closeLocation);
    var pressureEvidence = clamp01(directionalPressure);
    var structureEvidence = fromTrend
        ? clamp01((sideNow > 0 ? pxS - vahS : valS - pxS) /
                  (1.25 * aRefS))
        : clamp01(1 - Math.abs(
            pxS - (sideNow > 0 ? valS : vahS)
          ) / (1.5 * aRefS));
    var stressPenalty = 0.09 * clamp01(nz(regStress[i], 0));
    var extensionPenalty = 0.08 * clamp01(
        (Math.abs(pxS - prevS) / aRefS - 1.4) / 1.6 );
    convArr[i] = clamp01(
        0.65 * biasEvidence +
        0.20 * persistence +
        0.15 * locationEvidence );
    var quality = clamp01(
        0.24 * directionalKernel +
        0.22 * biasEvidence +
        0.13 * persistence +
        0.14 * locationEvidence +
        0.12 * pressureEvidence +
        0.15 * structureEvidence -
        stressPenalty -
        extensionPenalty );
    if (i_rcmOn) {
        var familyScore = famArr[i] === 'cont'
            ? nz(scContArr[i], 50)
            : nz(scRevArr[i], 50);
        quality = clamp01(
            quality + 0.06 * clamp((familyScore - 50) / 25, -1, 1) );}
    qualArr[i] = quality;
    if (i_rcmGate &&
        !(famArr[i] === 'cont' ? aContArr[i] : aRevArr[i])) {
        whyArr[i] = 'rcm-gate';
        continue;}
    var requiredSpace = fromTrend
        ? Math.max(SPACING, Math.round(SPACING * 2.5))
        : SPACING;
    if (i - lastCandidateBar < requiredSpace) {
        whyArr[i] = 'spacing';
        continue;}
    lastCandidateBar = i;
    if (quality < CONV) {
        whyArr[i] = 'below-quality';
        continue;}
    if (sideNow > 0) longRaw[i] = true;
    else shortRaw[i] = true;
    whyArr[i] = fromTrend ? 'trend-break' : (sideNow > 0 ? 'valley-swing' : 'peak-swing');}
var Q_RCM = 3, Q_VIX = 3, Q_DIV = 3, Q_SIDE = 2, Q_ACT = 2;
var Q_STATES = Q_RCM * Q_VIX * Q_DIV * Q_SIDE;
var qTable = make(Q_STATES * Q_ACT, 0);
for (i = 0; i < Q_STATES; i++) { qTable[i * Q_ACT] = 0.25; qTable[i * Q_ACT + 1] = 0.30; }
function qHash(rcmSt, vixId, divId, sideId) {
    var a = clamp(rcmSt + 1, 0, Q_RCM - 1), bq = clamp(vixId, 0, Q_VIX - 1);
    var c = clamp(divId, 0, Q_DIV - 1), d = clamp(sideId, 0, Q_SIDE - 1);
    return a + bq * Q_RCM + c * Q_RCM * Q_VIX + d * Q_RCM * Q_VIX * Q_DIV;}
function seededUnit(x) { var v = Math.sin(x * 12.9898 + 78.233) * 43758.5453; return v - Math.floor(v); }
var qEps = AGT.eps;
function pickSize(hash, barIdx) {
    if (!AGT.on) return 1.0;
    var act;
    if (seededUnit(barIdx) < qEps) act = seededUnit(barIdx * 7.13 + 1) < 0.5 ? 0 : 1;
    else act = qTable[hash * Q_ACT] >= qTable[hash * Q_ACT + 1] ? 0 : 1;
    qEps = Math.max(0.02, qEps * AGT.decay);
    return act === 0 ? 0.5 : 1.0;}
function qLearn(hash, sizeF, r) {
    if (!AGT.on) return;
    var act = sizeF < 0.75 ? 0 : 1, idx = hash * Q_ACT + act;
    qTable[idx] = clamp(qTable[idx] + AGT.lr * (r - qTable[idx]), -5, 5);}
var longLive = make(n, false), shortLive = make(n, false), longConf = make(n, false), shortConf = make(n, false);
for (i = ENGINE_START; i < n; i++) {
    if (!longRaw[i] && !shortRaw[i]) continue;
    if (i === lastBar) { longLive[i] = longRaw[i]; shortLive[i] = shortRaw[i]; }
    else { longConf[i] = longRaw[i]; shortConf[i] = shortRaw[i]; }}
var watchLong = make(n, false), watchShort = make(n, false);
for (i = ENGINE_START; i < n - 1; i++) {
    if (longConf[i] || shortConf[i]) continue;
    if (sideArr[i] === 0) continue;
    if (sideArr[i] > 0 && qualArr[i] >= CONV * 0.80) watchLong[i] = true;
    if (sideArr[i] < 0 && qualArr[i] >= CONV * 0.80) watchShort[i] = true;}
// ==============================================================================================
// EXECUTION LEDGER
// ==============================================================================================
var rList = [], exitMix = { SL: 0, BE: 0, TRAIL: 0, TP: 0, SHIELD: 0, TIME: 0, HOLD: 0 };
var sizeMix = { half: 0, full: 0 };
var openSide = 0, openEntry = 0, openStop = 0, openTarg = 0, openBar = 0, openMFE = 0, lastReason = '—', lastR = 0;
var openSizeF = 1.0, openHash = 0, lastSizeF = 1.0, openFam = 'cont', openExit = 'Trailing Stop';
var openPeak = null, beArmed = false;
var slMult = i_slAtr, tpMult = i_tpAtr, armR = 1.0;
var maxBars = Math.max(4, i_maxHold);
var EXIT_TAG = ({ 'Trailing Stop': 'TRAIL', 'ATR Target/Stop': 'ATR TGT',
    'Time Stop': 'TIME', 'Entropy Barrier Breach': 'E-BAR', 'Hybrid Trail+ATR': 'HYBRID' })[i_exitStrategy] || i_exitStrategy;
var BE_TRIG = 1.0;
var famWeight = { cont: 1.0, rev: 1.0 };
var exitSigArr = make(n, false);
var fireRMap = make(n, null);
var isR = [], oosR = [];
var OOS_START = Math.floor(n * 0.70);
function closeTrade(px, reason, barIdx) {
    var risk = Math.abs(openEntry - openStop);
    var r = risk > 0 ? ((px - openEntry) / risk) * openSide : 0;
    r = clamp(r, -3, 6);
    qLearn(openHash, openSizeF, r);
    var rBooked = r * openSizeF;
    rList.push(rBooked); exitMix[reason]++; lastReason = reason; lastR = rBooked; lastSizeF = openSizeF;
    exitSigArr[barIdx] = true;
    fireRMap[barIdx] = rBooked;
    if (barIdx < OOS_START) isR.push(rBooked); else oosR.push(rBooked);
    if (reason !== 'TIME' && reason !== 'HOLD') famWeight[openFam] = clamp(famWeight[openFam] + (r > 0 ? 0.03 : -0.03), 0.50, 1.50);
    openSide = 0;}
for (i = ENGINE_START; i < n - 1; i++) {
    var atE = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 0.0001);
    if (openSide !== 0) {
        var barsHeld = i - openBar;
        var mfe = (nz(close[i], 0) - openEntry) * openSide;
        if (mfe > openMFE) openMFE = mfe;
        var useTrail = openExit === 'Trailing Stop' || openExit === 'Hybrid Trail+ATR' || openExit === 'Entropy Barrier Breach';
        var hitSL = false, hitTP = false, tPx;
        if (openSide === 1) {
            openPeak = Math.max(openPeak === null ? nz(close[i], 0) : openPeak, nz(high[i], 0));
            if (!beArmed && (openPeak - openEntry) >= BE_TRIG * atE * slMult) { beArmed = true; if (openEntry > openStop) openStop = openEntry; }
            if (useTrail && (openPeak - openEntry) >= armR * atE * slMult) {
                tPx = openPeak - atE * i_trailAtr;
                if (tPx > openStop) openStop = tPx;}
            hitSL = nz(low[i], 0) <= openStop;
            hitTP = openTarg !== null && nz(high[i], 0) >= openTarg;
        } else {
            openPeak = Math.min(openPeak === null ? nz(close[i], 0) : openPeak, nz(low[i], 0));
            if (!beArmed && (openEntry - openPeak) >= BE_TRIG * atE * slMult) { beArmed = true; if (openEntry < openStop) openStop = openEntry; }
            if (useTrail && (openEntry - openPeak) >= armR * atE * slMult) {
                tPx = openPeak + atE * i_trailAtr;
                if (tPx < openStop) openStop = tPx;}
            hitSL = nz(high[i], 0) >= openStop;
            hitTP = openTarg !== null && nz(low[i], 0) <= openTarg;}
        var hitTime = (openExit === 'Time Stop' || openExit === 'Hybrid Trail+ATR') && barsHeld >= maxBars;
        var hitHold = barsHeld >= i_maxHold;
        var hitShield = false;
        if (openExit === 'Entropy Barrier Breach' && nz(chopEnt[i], 1) > 0.97 && nz(chopRank[i], 0.5) > 0.85) {
            if (openSide === 1 && nz(DirBias[i], 0) < -0.15) hitShield = true;
            if (openSide === -1 && nz(DirBias[i], 0) > 0.15) hitShield = true;}
        var trailMoved = openSide === 1 ? openStop > openEntry + EPS : openStop < openEntry - EPS;
        if (hitTP) closeTrade(openTarg, 'TP', i);
        else if (hitSL) closeTrade(openStop, trailMoved ? 'TRAIL' : (beArmed ? 'BE' : 'SL'), i);
        else if (hitShield) closeTrade(nz(close[i], 0), 'SHIELD', i);
        else if (hitTime) closeTrade(nz(close[i], 0), 'TIME', i);
        else if (hitHold) closeTrade(nz(close[i], 0), 'HOLD', i);}
    if (openSide === 0 && (longConf[i] || shortConf[i])) {
        openSide = longConf[i] ? 1 : -1;
        openEntry = nz(close[i], 0);
        openPeak = openEntry; beArmed = false;
        openExit = i_exitStrategy === 'Auto'
            ? (nz(chopRank[i], 0.5) <= 0.40 ? 'Trailing Stop' : (nz(chopRank[i], 0.5) <= 0.70 ? 'Hybrid Trail+ATR' : 'ATR Target/Stop'))
            : i_exitStrategy;
        openStop = openSide > 0 ? openEntry - atE * slMult : openEntry + atE * slMult;
        openTarg = (openExit === 'ATR Target/Stop' || openExit === 'Hybrid Trail+ATR')
            ? openEntry + openSide * atE * tpMult : null;
        var vixId = nz(atrZ[i], 1) < 0.8 ? 0 : (nz(atrZ[i], 1) < 1.3 ? 1 : 2);
        var dAbs = Math.abs(nz(dtsArr[i], 0));
        var divId = dAbs < 1.0 ? 0 : (dAbs < 2.5 ? 1 : 2);
        openHash = qHash(sgn(nz(DirBias[i], 0)), vixId, divId, openSide > 0 ? 0 : 1);
        openFam = famArr[i] === 'rev' ? 'rev' : 'cont';
        openSizeF = clamp(pickSize(openHash, i) * famWeight[openFam], 0.35, 1.65);
        if (openSizeF < 0.75) sizeMix.half++; else sizeMix.full++;
        openBar = i; openMFE = 0;}}
var EXP = DAFE.expectancy.summary(rList);
var EXP_IS = DAFE.expectancy.summary(isR);
var EXP_OOS = DAFE.expectancy.summary(oosR);
var l20 = rList.slice(-20), l20w = 0, l20i;
for (l20i = 0; l20i < l20.length; l20i++) if (l20[l20i] >= 0) l20w++;
var last20WR = l20.length ? l20w / l20.length : 0;
var curStreak = 0;
for (l20i = rList.length - 1; l20i >= 0; l20i--) {
    var w0 = rList[l20i] >= 0;
    if (l20i === rList.length - 1) curStreak = w0 ? 1 : -1;
    else if (w0 === (curStreak > 0)) curStreak += (w0 ? 1 : -1);
    else break;}
function sparkEq(list, w) {
    var chars = '▁▂▃▄▅▆▇█', eqS = [], sS = 0, iS, mn = Infinity, mx = -Infinity, slS, vS, ix, out = '';
    for (iS = 0; iS < list.length; iS++) { sS += list[iS]; eqS.push(sS); }
    slS = eqS.slice(-w);
    if (!slS.length) return '—';
    for (iS = 0; iS < slS.length; iS++) { vS = slS[iS]; if (vS < mn) mn = vS; if (vS > mx) mx = vS; }
    if (mx <= mn) return '▄▄▄';
    for (iS = 0; iS < slS.length; iS++) { ix = Math.round((slS[iS] - mn) / (mx - mn) * 7); out += chars.charAt(clamp(ix, 0, 7)); }
    return out;}
// ==============================================================================================
// ULMA CORE
// ==============================================================================================
var ROT_HAS_CLOCK = true, WALL = 0;
try { WALL = Date.now(); if (!(WALL > 0)) { ROT_HAS_CLOCK = false; WALL = n * 1000; } } catch (e) { ROT_HAS_CLOCK = false; WALL = n * 1000; }
var CLOCK = { wallMs: WALL, hasClock: ROT_HAS_CLOCK, barMod12: (n % 12) / 12, barMod8: (n % 8) / 8, barMod16: (n % 16) / 16 };
CLOCK.phase12 = CLOCK.barMod12 * 2 * Math.PI;
CLOCK.phase8 = CLOCK.barMod8 * 2 * Math.PI;
CLOCK.slow = (CLOCK.wallMs / 1000) % 100000;
CLOCK.fast = (CLOCK.wallMs / 150) % 100000;
CLOCK.beat = ROT_HAS_CLOCK ? CLOCK.wallMs / 1000 : n;
CLOCK.render = ROT_HAS_CLOCK ? CLOCK.wallMs : n * 250;
function breathe(base, amp, rate, off) { return base + amp * Math.sin(CLOCK.slow * rate + (off || 0)); }
function pulse01(rate, off) { return 0.5 + 0.5 * Math.sin(CLOCK.slow * rate + (off || 0)); }
function travel(len, speed, off) { var x = (CLOCK.beat * (speed || 1) + (off || 0)) % len; return x < 0 ? x + len : x; }
function march(div) { return (CLOCK.render / (div || 60)) % 8; }
// ==============================================================================================
// CHART PLOTTING
// ==============================================================================================
function anchorOpts(nm) { return { name: nm, color: 'transparent', affects_scale: false, show_in_legend: false }; }
var RIB_WEIGHTS = [-1.90, -1.45, -0.95, -0.50, 0.50, 0.95, 1.45, 1.90];
var RIB_WIDTHS  = [ 1.00,  1.50,  2.00,  2.50, 2.50, 2.00, 1.50, 1.00];
var RIB_ALPHA   = [ 0.35,  0.52,  0.70,  0.90, 0.90, 0.70, 0.52, 0.35];
var RIB_EDGE = 1.90;
var T_SLOW = CLOCK.slow;
var BREATH_UP = breathe(0.82, 0.18, 0.22, 0);
var BREATH_DN = breathe(0.82, 0.18, 0.22, Math.PI);
var RIPPLE_T = CLOCK.slow * 1.15;
var CASCADE_RATE = 0.85, CASCADE_LAG = 1.35, VOIDPIT = '#070D09';
function cascadeK(rank) { var xC = T_SLOW * CASCADE_RATE - rank * CASCADE_LAG; var kC2 = 0.5 + 0.5 * Math.sin(xC); return kC2 * kC2; }
function railRank(wAbs) { return wAbs < 0.70 ? 1 : (wAbs < 1.20 ? 2 : (wAbs < 1.70 ? 3 : 4)); }
function warpHex(col, k) { try { return tiny.mix(VOIDPIT, col, clamp(4 + 96 * k, 4, 100)).toHexString(); } catch (eW) { return col; } }
var ribbon = [], rb;
for (rb = 0; rb < RIB_WEIGHTS.length; rb++) ribbon.push(make(n, null));
var spineL = make(n, null);
var railHi = make(n, null), railLo = make(n, null), railMid = make(n, null), legL = make(n, null);
for (i = 0; i < n; i++) {
    if (i < ENGINE_START) continue;
    var aR3 = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 1e-4);
    var coreR = nz(cogArr[i], nz(close[i], 0));
    var imbalanceR = clamp11(nz(kValley[i], 0) - nz(kPeak[i], 0));
    var coherenceR = clamp01(0.35 + 0.65 * Math.max(nz(kPeak[i], 0), nz(kValley[i], 0)));
    var breadthR = aR3 * (0.18 + 0.58 * coherenceR) * (0.70 + 0.30 * Math.abs(imbalanceR));
    spineL[i] = coreR;
    for (rb = 0; rb < RIB_WEIGHTS.length; rb++) {
        var centerPullR = 1 - Math.abs(RIB_WEIGHTS[rb]) / RIB_EDGE;
        var breathR = RIB_WEIGHTS[rb] < 0 ? BREATH_DN : BREATH_UP;
        var warpR = 0.86 + 0.14 * cascadeK(railRank(Math.abs(RIB_WEIGHTS[rb])));
        var rippleR = Math.sin(i * 0.043 - RIPPLE_T) * 0.06 * (0.35 + 0.65 * centerPullR);
        ribbon[rb][i] = coreR + breadthR * breathR * warpR * (RIB_WEIGHTS[rb] + imbalanceR * 0.24 * centerPullR) + breadthR * rippleR;}
    if (VIS.rails) { railHi[i] = nz(vahA[i], null); railLo[i] = nz(valA[i], null); railMid[i] = nz(pocA[i], null); }}
var kNow = nz(kPeak[lastBar], 0) >= nz(kValley[lastBar], 0) ? 'peak' : 'valley';
var spineCol = kNow === 'valley' ? '#28B7FF' : '#FF8A1D';
var ribbonCols = ['#1D78D8', '#2597FF', '#30A9FF', '#4DB9F6', '#F08A20', '#D97116', '#B95B12', '#8F3F0C'];
var railPulse = 0.34 + 0.14 * pulse01(0.5, 0.9);
var pocPulse = 0.26 + 0.12 * pulse01(0.7, 2.1);
paint(railHi, { name: 'PVK Value Area High', color: rgba(brC(TH.warn), brA(railPulse)), thickness: 1, affects_scale: false, show_in_legend: false });
paint(railLo, { name: 'PVK Value Area Low', color: rgba(brC(TH.warn), brA(railPulse)), thickness: 1, affects_scale: false, show_in_legend: false });
paint(railMid, { name: 'PVK Point of Control', color: rgba(brC(TH.info), brA(pocPulse)), thickness: 1, affects_scale: false, show_in_legend: false });
for (rb = 0; rb < RIB_WEIGHTS.length; rb++) {
    var kC = cascadeK(railRank(Math.abs(RIB_WEIGHTS[rb])));
    paint(ribbon[rb], { name: 'PVK Reservoir Rail ' + (rb + 1), color: rgba(warpHex(brC(ribbonCols[rb]), kC), ribA(RIB_ALPHA[rb]) * (0.04 + 0.96 * kC)), thickness: RIB_WIDTHS[rb] * (0.50 + 0.50 * kC), affects_scale: false, show_in_legend: false });}
var spinePulse = 0.80 + 0.20 * Math.sin(T_SLOW * 0.85);
var spineK = cascadeK(0);
paint(spineL, { name: 'PVK Reservoir Core', color: rgba(warpHex(brC(spineCol), spineK), ribA(spinePulse) * (0.05 + 0.95 * spineK)), thickness: 0.9 + 1.7 * spineK, affects_scale: false, show_in_legend: false });
var rComet = paint(spineL, anchorOpts('PVK Spine Comet'));
var candCol = make(n, null);
for (i = 0; i < n; i++) {
    if (i < ENGINE_START) { candCol[i] = rgba(TH.dim, brA(0.40)); continue; }
    var kp2 = nz(kPeak[i], 0), kv2 = nz(kValley[i], 0), kM = Math.max(kp2, kv2);
    candCol[i] = rgba(kv2 >= kp2 ? '#28B7FF' : '#F08A20', brA(0.18 + 0.45 * clamp01(kM)));}
color_candles(VIS.glow ? candCol : makeNull(n));
var MANIFOLD_WIN = clamp(Math.round(L_norm * 1.2), 90, 340);
var LIVE_EDGE_TOL = 2;
var MARGIN_BARS = 32;
var usingVisRange = true;
function getVisibleBounds() {
    var start, end, live;
    if (i_visRange && typeof i_visRange.candleIndexFrom === 'number' && typeof i_visRange.candleIndexTo === 'number' && i_visRange.candleIndexTo > i_visRange.candleIndexFrom) {
        start = i_visRange.candleIndexFrom;
        end = i_visRange.candleIndexTo;
        live = (n - 1 - end) <= LIVE_EDGE_TOL;
        if (live) end = n - 1;
        usingVisRange = true;
    } else {
        start = n - MANIFOLD_WIN;
        end = n - 1;
        live = true;}
    start = clamp(Math.floor(start), 0, n - 1);
    end = clamp(Math.ceil(end), start + 1, n - 1);
    start = Math.max(start, ENGINE_START);
    if (end <= start) { start = Math.max(0, Math.min(start, n - 2)); end = Math.min(n - 1, start + 1); }
    return { start: start, end: end, live: live };}
var bounds = getVisibleBounds();
var vStart = bounds.start, vEnd = bounds.end, showNow = bounds.live;
var bAHi = make(n, null), bALo = make(n, null), bTHi = make(n, null), bTLo = make(n, null);
var pulseLo = make(n, null), pulseHi = make(n, null);
for (i = 0; i < n; i++) {
    var aB = Math.max(nz(atr14[i], 0), Math.abs(nz(close[i], 1)) * 1e-4);
    bALo[i] = nz(low[i], 0) - aB * 0.55;
    bTLo[i] = nz(low[i], 0) - aB * 1.05;
    bAHi[i] = nz(high[i], 0) + aB * 0.55;
    bTHi[i] = nz(high[i], 0) + aB * 1.05;
    pulseLo[i] = nz(low[i], 0) - aB * 2.1;
    pulseHi[i] = nz(high[i], 0) + aB * 2.1;}
var rBAHi = paint(bAHi, anchorOpts('PVK Badge Anchor Hi'));
var rBALo = paint(bALo, anchorOpts('PVK Badge Anchor Lo'));
var rBTHi = paint(bTHi, anchorOpts('PVK Badge Text Hi'));
var rBTLo = paint(bTLo, anchorOpts('PVK Badge Text Lo'));
var rPulseLo = paint(pulseLo, anchorOpts('PVK Valley Pulse'));
var rPulseHi = paint(pulseHi, anchorOpts('PVK Peak Pulse'));
var xRail = make(n, null);
for (i = 0; i < n; i++) xRail[i] = nz(close[i], 0);
var rExit = paint(xRail, anchorOpts('PVK Exit Rail'));
	if (i_marks) {
    for (i = Math.max(ENGINE_START, vStart); i < n; i++) {
        if (exitSigArr[i]) {
            paint_label_at_line(rExit, i, '✕', { color: rgba(TH.dim, 0.90), background_color: 'transparent', border_width: 0, vertical_align: 'middle' }); }
        if (VIS.glow && i % Math.max(1, VIS.step * 3) === 0) {
            var kk = clamp01(Math.max(nz(kPeak[i], 0), nz(kValley[i], 0)));
            if (kk >= 0.30) {
                if (nz(kValley[i], 0) >= nz(kPeak[i], 0)) {
                    paint_label_at_line(rPulseLo, i, '.', { color: rgba(TH.a1, 0.22 + 0.60 * kk), background_color: 'transparent', border_width: 0, vertical_align: 'middle' }); }
                else {
                    paint_label_at_line(rPulseHi, i, '.', { color: rgba(TH.a2, 0.22 + 0.60 * kk), background_color: 'transparent', border_width: 0, vertical_align: 'middle' }); }}}
        if (longConf[i]) {
            paint_label_at_line(rBALo, i, '▲', { color: cBull, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
            paint_label_at_line(rBTLo, i, srcArr[i] === 'trend' ? ' T ' : ' L ', { color: cBull, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
        } else if (watchLong[i]) {
            paint_label_at_line(rBALo, i, '△', { color: rgba(cBull, 0.55), background_color: 'transparent', border_width: 0, vertical_align: 'middle' });}
        if (shortConf[i]) {
            paint_label_at_line(rBAHi, i, '▼', { color: cBear, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
            paint_label_at_line(rBTHi, i, srcArr[i] === 'trend' ? ' T ' : ' S ', { color: cBear, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
        } else if (watchShort[i]) {
            paint_label_at_line(rBAHi, i, '▽', { color: rgba(cBear, 0.55), background_color: 'transparent', border_width: 0, vertical_align: 'middle' });}}
    var spanC = Math.max(12, vEnd - vStart), headC = Math.floor(travel(spanC, 1.7)), qC, cometSide = nz(kValley[lastBar], 0) >= nz(kPeak[lastBar], 0);
    for (qC = 0; qC < 7; qC++) {
        var ciC = Math.round(vStart + headC) - qC * 4;
        if (ciC < vStart || ciC > vEnd || spineL[ciC] === null || spineL[ciC] === undefined) continue;
        paint_label_at_line(rComet, ciC, qC === 0 ? '●' : (qC < 3 ? '•' : '·'), { color: qC === 0 ? rgba('#FFFFFF', 0.95) : rgba(cometSide ? TH.a1 : TH.a2, 0.70 - qC * 0.09), background_color: 'transparent', border_width: 0, vertical_align: 'middle' });}
    if (i_live) {
        if (longLive[lastBar]) {
            paint_label_at_line(rBALo, lastBar, '▲', { color: cLive, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
            paint_label_at_line(rBTLo, lastBar, ' ! ', { color: cLive, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });}
        if (shortLive[lastBar]) {
            paint_label_at_line(rBAHi, lastBar, '▼', { color: cLive, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });
            paint_label_at_line(rBTHi, lastBar, ' ! ', { color: cLive, background_color: 'transparent', border_width: 0, vertical_align: 'middle' });}}}
// ==============================================================================================
// METRICS DASHBOARD & HELPERS
// ==============================================================================================
function mkCell(text, color, align, bold, colspan, background) {
    return { text: String(text), color: color, textAlign: align || 'left', fontWeight: bold ? 'bold' : 'normal', colspan: colspan || 1, background: background || cBg, fontSize: 10 };}
function row3(a, b, c) { var cs = []; if (a) cs.push(a); if (b) cs.push(b); if (c) cs.push(c); return { cells: cs }; }
function guideHead(text, color) { return { cells: [mkCell(text, color, 'left', true, 2, rgba(color, 0.10))] }; }
function guideRow(label, desc, accent) {
    return { cells: [mkCell(label, accent, 'left', true, 1, cBg), mkCell(desc, cTxt, 'left', false, 1, cBg)] };}
function bar(p, w) {
    p = clamp01(p); w = w || 8;
    var nFill = Math.round(p * w), s = '', k;
    for (k = 0; k < w; k++) s += (k < nFill ? '█' : '░');
    return s;}
function gauge(val, scale, width) {
    var p = clamp(nz(val, 0) / (scale || 1), -1, 1), w = width || 9, mid = Math.floor(w / 2);
    var pos = Math.round((p + 1) / 2 * (w - 1)), s = '', k;
    for (k = 0; k < w; k++) {
        if (k === mid) s += '│';
        else if (p >= 0 && k > mid && k <= pos) s += '▶';
        else if (p < 0 && k < mid && k >= pos) s += '◀';
        else s += '·';}
    return s;}
function zoneOf(p01) { return p01 >= 0.70 ? cBull : p01 >= 0.50 ? cWarn : cDim; }
function pct(x) { return (x === null || x === undefined || isNaN(x)) ? '—' : (x * 100).toFixed(0) + '%'; }
function dTxt(x) { return (x === null || x === undefined || isNaN(x)) ? '—' : x.toFixed(3); }
function regName(r) { return r === 'T' ? 'TREND' : (r === 'M' ? 'MEAN REVERT' : 'CONSOLIDATE'); }
function zoneName(z) { return z === 2 ? 'EXTREME BUY' : (z === 1 ? 'BUY ZONE' : (z === -2 ? 'EXTREME SELL' : (z === -1 ? 'SELL ZONE' : 'BALANCED'))); }
function zoneCol(z) { return z >= 1 ? TH.a3 : (z <= -1 ? TH.a2 : cDim); }
var li = lastBar;
var whyMap = { 'no-event': 'no swing or break', 'no-bias': 'no bias', 'spacing': 'spacing', 'rcm-gate': 'family blocked', 'below-quality': 'low signal quality', 'peak-swing': 'peak swing', 'valley-swing': 'valley swing', 'trend-break': 'value-area break', 'warmup': 'warmup' };
var whyNow = whyMap[whyArr[li]] || String(whyArr[li]);
var liveNow = i_live && (longLive[lastBar] || shortLive[lastBar]);
var qualNow = nz(qualArr[li], 0);
var sigTxt = liveNow ? '● LIVE' : (qualNow >= CONV ? 'ARMED' : 'WAIT');
var sigCl = liveNow ? cLive : (qualNow >= CONV ? cBull : cDim);
var kPk = nz(kPeak[li], 0), kVl = nz(kValley[li], 0);
var rows = [];
rows.push({ cells: [mkCell('⛰ PVK', TH.a1, 'center', true, 3, rgba(TH.a1, 0.16))] });
rows.push(row3(mkCell('Structure', cDim, 'left', false, 1, cBg), mkCell(kVl >= kPk ? 'VALLEY' : 'PEAK', kVl >= kPk ? TH.a1 : TH.a2, 'center', true, 1, cBg), mkCell(Math.max(kPk, kVl).toFixed(2), kVl >= kPk ? TH.a1 : TH.a2, 'right', true, 1, cBg)));
rows.push(row3(mkCell('Signal', cDim, 'left', false, 1, cBg), mkCell(sigTxt, sigCl, 'center', true, 1, cBg), mkCell(whyNow, cDim, 'right', false, 1, cBg)));
rows.push(row3(mkCell('Quality', cDim, 'left', false, 1, cBg), mkCell(bar(qualNow, 8), zoneOf(qualNow), 'center', false, 1, cBg), mkCell(qualNow.toFixed(2) + ' / ' + CONV.toFixed(2), qualNow >= CONV ? cBull : cDim, 'right', true, 1, cBg)));
rows.push(row3(mkCell('Chop', cDim, 'left', false, 1, cBg), mkCell(bar(1 - clamp01(nz(chopRank[li], 0.5)), 8), chopOk[li] ? cBull : cBear, 'center', false, 1, cBg), mkCell(chopOk[li] ? 'clear' : 'blocked', chopOk[li] ? cBull : cBear, 'right', true, 1, cBg)));
rows.push(row3(mkCell('Bias', cDim, 'left', false, 1, cBg), mkCell(gauge(nz(DirBias[li], 0), 1, 9), nz(DirBias[li], 0) >= 0 ? cBull : cBear, 'center', false, 1, cBg), mkCell((nz(DirBias[li], 0) >= 0 ? '+' : '') + nz(DirBias[li], 0).toFixed(2), nz(DirBias[li], 0) >= 0 ? cBull : cBear, 'right', true, 1, cBg)));
if (i_dash === 'Full') {
    rows.push({ cells: [mkCell('SWING KERNEL', TH.a3, 'center', true, 3, rgba(TH.a3, 0.10))] });
    rows.push(row3(mkCell('Peak k', cDim, 'left', false, 1, cBg), mkCell(bar(kPk, 8), TH.a2, 'center', false, 1, cBg), mkCell(kPk.toFixed(2), TH.a2, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Valley k', cDim, 'left', false, 1, cBg), mkCell(bar(kVl, 8), TH.a1, 'center', false, 1, cBg), mkCell(kVl.toFixed(2), TH.a1, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('COG mom', cDim, 'left', false, 1, cBg), mkCell(gauge(nz(cogMom[li], 0) / Math.max(1e-9, nz(atr14[li], 1)) * 6, 1, 9), nz(cogMom[li], 0) >= 0 ? cBull : cBear, 'center', false, 1, cBg), mkCell(nz(cogMom[li], 0).toFixed(3), cTxt, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('DTS', cDim, 'left', false, 1, cBg), mkCell(gauge(nz(dtsArr[li], 0), 3, 9), nz(dtsArr[li], 0) >= 0 ? cBull : cBear, 'center', false, 1, cBg), mkCell(nz(dtsArr[li], 0).toFixed(2), cTxt, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Entropy', cDim, 'left', false, 1, cBg), mkCell(nz(chopEnt[li], 1).toFixed(3), cTxt, 'center', true, 1, cBg), mkCell('rank ' + pct(nz(chopRank[li], 0.5)), cTxt, 'right', true, 1, cBg)));
    rows.push({ cells: [mkCell('VALUE AREA', TH.a3, 'center', true, 3, rgba(TH.a3, 0.10))] });
    rows.push(row3(mkCell('VAH', cDim, 'left', false, 1, cBg), mkCell(nz(vahA[li], 0).toFixed(2), TH.warn, 'center', true, 1, cBg), mkCell(nz(close[li], 0) > nz(vahA[li], 0) ? 'above' : 'inside', nz(close[li], 0) > nz(vahA[li], 0) ? cBull : cDim, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('POC', cDim, 'left', false, 1, cBg), mkCell(nz(pocA[li], 0).toFixed(2), cInfo, 'center', true, 2, cBg), null));
    rows.push(row3(mkCell('VAL', cDim, 'left', false, 1, cBg), mkCell(nz(valA[li], 0).toFixed(2), TH.warn, 'center', true, 1, cBg), mkCell(nz(close[li], 0) < nz(valA[li], 0) ? 'below' : 'inside', nz(close[li], 0) < nz(valA[li], 0) ? cBear : cDim, 'right', true, 1, cBg)));
    rows.push({ cells: [mkCell('SIZING AGENT', TH.a3, 'center', true, 3, rgba(TH.a3, 0.10))] });
    rows.push(row3(mkCell('Mode', cDim, 'left', false, 1, cBg), mkCell(String(i_agentMode), AGT.on ? cTxt : cDim, 'center', true, 1, cBg), mkCell(AGT.on ? 'eps ' + qEps.toFixed(3) : 'off', AGT.on ? cTxt : cDim, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Size mix', cDim, 'left', false, 1, cBg), mkCell(sizeMix.half + ' half', cTxt, 'center', true, 1, cBg), mkCell(sizeMix.full + ' full', cTxt, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('States', cDim, 'left', false, 1, cBg), mkCell(String(Q_STATES) + ' live', cBull, 'center', true, 1, cBg), mkCell('was 162/54', cDim, 'right', true, 1, cBg)));
    rows.push({ cells: [mkCell('LEDGER (R)', TH.a3, 'center', true, 3, rgba(TH.a3, 0.10))] });
    rows.push(row3(mkCell('Trades', cDim, 'left', false, 1, cBg), mkCell(String(EXP.trades), cTxt, 'center', true, 1, cBg), mkCell(pct(EXP.wr) + ' WR', EXP.wr >= 0.5 ? cBull : cBear, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Expect', cDim, 'left', false, 1, cBg), mkCell(EXP.expR.toFixed(2) + 'R', EXP.expR >= 0 ? cBull : cBear, 'center', true, 1, cBg), mkCell('PF ' + EXP.pf.toFixed(2), EXP.pf >= 1 ? cBull : cBear, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Net / DD', cDim, 'left', false, 1, cBg), mkCell(EXP.netR.toFixed(1) + 'R', EXP.netR >= 0 ? cBull : cBear, 'center', true, 1, cBg), mkCell('-' + EXP.ddR.toFixed(1) + 'R', cWarn, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('L20 / Streak', cDim, 'left', false, 1, cBg), mkCell(pct(last20WR), last20WR >= 0.5 ? cBull : cBear, 'center', true, 1, cBg), mkCell((curStreak > 0 ? '+' : '') + curStreak, curStreak >= 0 ? cBull : cBear, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Equity', cDim, 'left', false, 1, cBg), mkCell(sparkEq(rList, 10), TH.a3, 'center', false, 1, cBg), mkCell(openSide !== 0 ? (openSide > 0 ? 'OPEN L' : 'OPEN S') : 'flat', openSide !== 0 ? cWarn : cDim, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Exit book', cDim, 'left', false, 1, cBg), mkCell(i_exitStrategy === 'Auto' ? 'AUTO · ' + openExit : EXIT_TAG, TH.a3, 'center', true, 1, cBg), mkCell('SL ' + i_slAtr.toFixed(1) + ' / TP ' + i_tpAtr.toFixed(1) + ' / TR ' + i_trailAtr.toFixed(1), cTxt, 'right', false, 1, cBg)));
    rows.push(row3(mkCell('Exits', cDim, 'left', false, 1, cBg), mkCell('SL' + exitMix.SL + ' BE' + exitMix.BE + ' TR' + exitMix.TRAIL, cTxt, 'center', false, 1, cBg), mkCell('TP' + exitMix.TP + ' SD' + exitMix.SHIELD, cDim, 'right', false, 1, cBg)));
    rows.push(row3(mkCell('IS / OOS', cDim, 'left', false, 1, cBg), mkCell(EXP_IS.trades + 'tr / ' + EXP_OOS.trades + 'tr', cTxt, 'center', false, 1, cBg), mkCell(pct(EXP_OOS.wr) + ' oos', zoneOf(EXP_OOS.wr), 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Fam trust', cDim, 'left', false, 1, cBg), mkCell('c ' + famWeight.cont.toFixed(2), famWeight.cont >= 1 ? cBull : cBear, 'center', false, 1, cBg), mkCell('r ' + famWeight.rev.toFixed(2), famWeight.rev >= 1 ? cBull : cBear, 'right', true, 1, cBg)));
    rows.push(row3(mkCell('Last exit', cDim, 'left', false, 1, cBg), mkCell(String(lastReason), cTxt, 'center', true, 1, cBg), mkCell(lastR.toFixed(2) + 'R', lastR >= 0 ? cBull : cBear, 'right', true, 1, cBg)));}
paint_overlay('PVK Metrics', { position: 'top_right', order: 'above_all' }, {background: i_dash !== 'Off' ? cBg : 'rgba(0,0,0,0)', border: i_dash !== 'Off' ? '1px solid ' + cInfo : '0px solid transparent', borderRadius: 6, width: i_dash !== 'Off' ? 200 : 1, rows: i_dash !== 'Off' ? rows : [] });
// ==============================================================================================
// GUIDE DASHBOARDS (INPUTS/VISUALS)
// ==============================================================================================
var gRows = [];
gRows.push({ cells: [mkCell('⛰ PVK — INPUT GUIDE', cInfo, 'center', true, 2, rgba(cInfo, 0.16))] });
gRows.push({ cells: [mkCell('Preferences only; every window and gate is derived. Three things were broken in the shipped build. The entropy chop filter passed only 1.42% of 35,280 bars at its default, leaving 30 trades across 30 holdout seeds. The peak/valley mapping was a pure fade and measured negative in-sample AND on holdout. The Q-table allocated 162 states but only 54 were reachable.', cDim, 'left', false, 2, cBg)] });
gRows.push(guideHead('SYSTEM', cBull));
gRows.push(guideRow('Engine Preset', 'Scalper / Balanced / Swing / Position. Sets the COG length, value-area lookback and rows, the chandelier and normalisation windows, spacing and horizon.', cBull));
gRows.push(guideRow('◈ Preset Multiplier', 'The sensitivity dial for the whole preset. Below 1.00 shortens every window — swings register faster, more signals. Above 1.00 lengthens them — steadier, fewer. 1.00 is the preset exactly as calibrated.', cBull));
gRows.push(guideRow('Chop Strictness', 'The entropy rank gate — hardcoded to the percentile form after the Absolute variant measured a 1.42 percent pass rate (a silent engine-killer, now deleted). Loose admits the calmest 80 percent of bars, Strict only the calmest 20. MEASURED on holdout: rank 0.80 gives +0.7955 ATR at 63.0 percent over 227 trades, rank 0.20 gives +0.7624 at 71.8 percent over 170.', cBull));
gRows.push(guideRow('Swing Sensitivity', 'Scales the momentum threshold for a peak or valley turn. Measured a WEAK dial: the trigger rate only moves from 21.11 to 17.74 percent across its whole range, so use spacing and conviction for frequency.', cBull));
gRows.push(guideRow('Min Swing Amplitude', 'Minimum ATR move since the last opposite swing. Measured monotonically HARMFUL: 0.0 gives +0.6237 ATR over 746 trades, the old 1.5 default gives +0.4675 over 205, 3.0 gives +0.3972 over 161. It destroys sample without improving quality, so the default is now low.', cBull));
gRows.push(guideRow('◈ Conviction', 'The single selectivity dial, 1–9 plus Auto. Auto (default) reads the preset calibrated conviction. 1 = loosest — many signals, thin edge; 9 = strictest — rare, deep edge. Monotonic: raising it can only reduce count. Every point in the band measured profitable on holdout.', cBull));
gRows.push(guideHead('LAYERS', cInfo));
gRows.push(guideRow('◈ Agent Mode', 'A Q-learning bandit that modulates the LEDGER conviction weight between 50 and 100 percent — it sizes the internal R book, it does not place orders and it can no longer veto a trade: scored at full weight the trades it skipped were still profitable (403 skips worth +0.3241 ATR against 1187 keeps worth +0.4482), so vetoing threw away edge.', cInfo));
gRows.push(guideRow('◈ Exit Strategy', 'Auto (default) picks the exit per trade from the tape at entry — calm entropy rides a Trailing Stop, normal tape takes the Hybrid bracket, chaotic entropy takes a fixed ATR Target/Stop. The named modes force one exit for every trade. All respect Max Hold.', cWarn));
gRows.push(guideRow('◈ SL / TP / Trail (ATR)', 'Independent exit distances in ATR multiples — exactly what the ledger uses, no hidden scaling. Keep Take Profit above Stop Loss for positive reward-to-risk.', cWarn));
gRows.push(guideRow('◈ Max Hold Bars', 'The hard duration cap on every strategy. Time Stop and Hybrid also exit on the clock here.', cWarn));
gRows.push(guideRow('RCM Layer', 'Rolling evidence on the continuation and fade families. Soft grades a fire; Gate can also block the family the tape does not own. It never creates a signal.', cInfo));
gRows.push(guideHead('EXECUTION', cWarn));
gRows.push(guideRow('Risk ATR (Stop)', 'Stop distance in ATR for the internal R book. Target is 1.60x that stop. Sizes the honesty ledger only.', cWarn));
gRows.push(guideRow('Execution Profile', 'Tight / Adaptive / Wide stretches the stop, the trail arm and the time stop together.', cWarn));
gRows.push(guideRow('Intra-bar', 'On paints a yellow LIVE badge on the forming bar the moment a swing qualifies. Alerts always fire on the confirmed close — nothing you are notified about can vanish, and a confirmed badge never moves.', cWarn));
gRows.push(guideRow('Lower Manifold', 'Two views only. Signal Raster is a dense event-to-fire web rebuilt from Flip-Mode. Harmonic Rosette is a polar confluence instrument — coherence guilloché, causal spiral arms, phase-sector spokes, radix-2 impulse spectrum, R-ledger ticks, radar sweep and beat waves. Pure plane geometry, zero 3D projection. The Manifold Height dial scales the panel: Petite, Compact, Standard, Tall or Grand.', cInfo));
gRows.push(guideRow('Visual Brightness', 'Dims or boosts main-chart visuals (reservoir rails, core, value rails, legs and candle tint), 1 to 10. The reservoir depth-alpha hierarchy is preserved at every setting. Badges, dashboard, guides and the manifold are never dimmed.', cWarn));
gRows.push(guideRow('Ledger honesty', 'The R book is internal, booked on confirmed bars only, split in-sample vs. out-of-sample at 70 percent of the chart. Family trust adapts size from CLOSED trades only. Exits register their own alert and ✕ mark.', cWarn));
var vRows = [];
vRows.push({ cells: [mkCell('⛰ PVK — VISUAL GUIDE', cInfo, 'center', true, 2, rgba(cInfo, 0.16))] });
vRows.push({ cells: [mkCell('Every visual here is original to PVK and appears in no other DAFE indicator.', cDim, 'left', false, 2, cBg)] });
vRows.push(guideHead('MAIN CHART', cBull));
vRows.push(guideRow('Adaptive Reservoir Ribbons', 'Nine adaptive lines: four rails per side orbit one opaque gravity core. From the outside inward, width ramps 0.50 → 1.00 → 1.50 → 2.00 while alpha rises 0.35 → 0.52 → 0.70 → 0.90 → 1.00 at the core. The fan expands with kernel coherence and leans with peak/valley imbalance while a slow clock breath widens the upper and lower banks counter-phase and a travelling ripple walks the fan, and the blackout cascade warps it: the core dims to black first, then each rail pair outward in sequence, forever — a living, depth-faded bundle.', cBull));
vRows.push(guideRow('Gravity Spine', 'The fully opaque 2-pixel linear-weighted Center of Gravity core. It anchors all eight surrounding rails and takes the colour of the currently dominant kernel.', cBull));
vRows.push(guideRow('Value Area Rails', 'VAH and VAL drawn as stepped rails with the Point of Control between them, recomputed on a stride from the volume profile.', cBull));
vRows.push(guideRow('Swing Legs', 'Straight connectors linking each confirmed swing to the one before it, so the zig-zag structure the engine is trading is explicit.', cBull));
vRows.push(guideRow('Candle Tint', 'Each candle tinted by the dominant kernel, green where a valley is forming and rust at a peak, with opacity set by kernel strength.', cBull));
vRows.push(guideRow('Entry Badges', 'Filled triangles mark confirmed entries, hollow triangles watch bars. A T badge means the trade came from the Trend breakout engine rather than the swing engine. ✕ marks a booked exit. Yellow + ! is the LIVE forming-bar preview.', cBull));
vRows.push(guideHead('LOWER MANIFOLD', cInfo));
vRows.push(guideRow('Signal Raster', 'The Flip-Mode-derived event web. Pivot, delayed-fractal, COG, value-area and FIRE rows glow at the live edge; newest-first links show same-side evidence becoming a confirmed fire. A comet lights the active path.', cInfo));
vRows.push(guideRow('Harmonic Rosette', 'A polar confluence engine — every layer is plane geometry driven by a live PVK series. Core arcs read quality and chop. Four counter-rotating guilloché layers (harmonics 2/3/5/8) breathe with kernel coherence. Three spiral arms trace causal history on a 2.15-loop rail: valley energy outward, peak energy inward, bias between. 24 spokes histogram kernel energy by phase sector. A 128-point Hann-windowed radix-2 spectrum of the signed kernel impulse rings the bezel with its centroid marked. Left annex: PHASE TIDE — sixteen overlapping Hann windows each get a radix-2 FFT, stacked into a time-by-band scalogram that now uses the full annex height, with the dominant-frequency ridge, a spectral-centroid snake and an instant band ladder. Right annex: SYNAPSE — 21 neurons whose activations are live kernel series in four layers, wired by the strongest measured correlations; every 3 seconds the weakest connection is pruned and a promising one grows in, and confirmed fires flash their source neuron and propagate white pulses two hops along the lattice. A 24-trade R ticker keeps the ledger readable. Radar sweep, twin beat waves, motes and a scan beam keep it alive; stars are confirmed fires sized by booked R, hollow nodes are exits, the white glint rides the dominant arm.', cInfo));
paint_overlay('PVK Guide', { position: 'bottom_right', order: 'above_all' }, {background: i_guideMode !== 'Off' ? cBg : 'rgba(0,0,0,0)', border: i_guideMode !== 'Off' ? '1px solid ' + cInfo : '0px solid transparent', borderRadius: 6, width: i_guideMode !== 'Off' ? 460 : 1, rows: i_guideMode === 'Input Guide' ? gRows : (i_guideMode === 'Visual Guide' ? vRows : []) });
// ==============================================================================================
// MANIFOLD DASHBOARD
// ==============================================================================================
function panelHeader(text) {
    return { cells: [{ text: text, color: TH.a1, background: 'linear-gradient(90deg,' + rgba(TH.a1, 0.16) + ',' + rgba(TH.a2, 0.16) + ')', textAlign: 'center', fontSize: 10, fontWeight: 'bold', width: '100%' }] };}
function legendRow(text) {
    return { cells: [{ text: text, color: TH.txt, background: rgba(TH.panel, 0.85), textAlign: 'center', fontSize: 9, fontWeight: 'bold', width: '100%' }] };}
function axisRow(text) {
    return { cells: [{ text: text, color: TH.dim, background: rgba(TH.panel, 0.9), textAlign: 'center', fontSize: 8, width: '100%' }] };}
function chartRow(datasets, xmin, xmax, ymin, ymax, hpx) {
    return { cells: [{
        chart: {
            width: '100%', height: (hpx || 120) + 'px', type: 'line',
            options: {
                devicePixelRatio: 2, maintainAspectRatio: false,
                layout: { padding: { top: 2, bottom: 2, left: 2, right: 2 } },
                scales: {
                    x: { type: 'linear', min: xmin, max: xmax, display: false, grid: { display: false } },
                    y: { type: 'linear', min: ymin, max: ymax, display: false, grid: { display: false } } },
                plugins: { legend: { display: false } },
                elements: { line: { tension: 0.4 } } },
            data: { datasets: datasets } },
        background_color: 'radial-gradient(ellipse at center, ' + rgba(TH.panel, 0.60) + ' 0%, ' + rgba(TH.bg, 0.98) + ' 80%)',
        border_color: 'transparent', border_width: 0, padding: '0px', width: '100%' }] };}
function ds(label, data, color, width, radius, fill, dash, dashOff) {
    return { label: label, data: data, borderColor: color, backgroundColor: fill || 'transparent', borderWidth: width, pointRadius: radius, pointBackgroundColor: color, pointBorderWidth: 0, fill: fill ? 'origin' : false, borderDash: dash || [], borderDashOffset: dashOff || 0, tension: 0.4, showLine: width > 0 };}
function pt(x, y) { return { x: x, y: y }; }
function hashRand(x) { var v = Math.sin(x * 12.9898) * 43758.5453; return v - Math.floor(v); }
// (ULMA motion core lives above the chart-plotting section now — the nine-engine registry, its dispatch map and findDS were dead scaffolding and are gone.)
var mRows = [];
// TWO-VIEW CONTRACT -------------------------------------------------------------
function viewSignalRaster() {
    var sets = [], rStart = Math.max(ENGINE_START, n - 160);
    var ROW = { PIVOT: 5, FRACTAL: 4, COG: 3, VALUE: 2, FIRE: 0 };
    var cells = [], cols = [], sizes = [], events = [], k;
    for (k = rStart; k < n; k++) {
        var x = k - n + 1, age = lastBar - k, glow = age <= 3 ? (4 - age) * 0.5 : 0;
        if (pricePeakA[k]) { cells.push(pt(x, ROW.PIVOT)); cols.push(rgba(TH.a2, age <= 3 ? 0.95 : 0.55)); sizes.push(3.2 + glow * 2); events.push({ b:k,r:ROW.PIVOT,s:-1 }); }
        if (priceValleyA[k]) { cells.push(pt(x, ROW.PIVOT)); cols.push(rgba(TH.a1, age <= 3 ? 0.95 : 0.55)); sizes.push(3.2 + glow * 2); events.push({ b:k,r:ROW.PIVOT,s:1 }); }
        if (fracHiA[k]) { cells.push(pt(x, ROW.FRACTAL)); cols.push(rgba(TH.a2,0.60)); sizes.push(2.6+glow); events.push({b:k,r:ROW.FRACTAL,s:-1}); }
        if (fracLoA[k]) { cells.push(pt(x, ROW.FRACTAL)); cols.push(rgba(TH.a1,0.60)); sizes.push(2.6+glow); events.push({b:k,r:ROW.FRACTAL,s:1}); }
        var cm = nz(cogMom[k],0), aR = Math.max(nz(atr14[k],0),Math.abs(nz(close[k],1))*1e-4);
        if (Math.abs(cm) > aR*0.02) { cells.push(pt(x,ROW.COG)); cols.push(cm < 0 ? rgba(TH.a2,0.55) : rgba(TH.a1,0.55)); sizes.push(2.3+glow); events.push({b:k,r:ROW.COG,s:cm<0?-1:1}); }
        if (Math.abs(nz(close[k],0)-nz(vahA[k],0)) <= aR*0.35) { cells.push(pt(x,ROW.VALUE)); cols.push(rgba(TH.a2,0.60)); sizes.push(2.4+glow); events.push({b:k,r:ROW.VALUE,s:-1}); }
        if (Math.abs(nz(close[k],0)-nz(valA[k],0)) <= aR*0.35) { cells.push(pt(x,ROW.VALUE)); cols.push(rgba(TH.a1,0.60)); sizes.push(2.4+glow); events.push({b:k,r:ROW.VALUE,s:1}); }
        if (longConf[k]) { cells.push(pt(x,ROW.FIRE)); cols.push(rgba(TH.a1,0.96)); sizes.push(4.5+glow*2); events.push({b:k,r:ROW.FIRE,s:1}); }
        if (shortConf[k]) { cells.push(pt(x,ROW.FIRE)); cols.push(rgba(TH.a2,0.96)); sizes.push(4.5+glow*2); events.push({b:k,r:ROW.FIRE,s:-1}); } }
    var cap = 4500, made = 0, cometX = -162 + ((CLOCK.beat * 1) % 162), e1, e2;
    for (e1=events.length-1; e1>=0 && made<cap; e1--) for (e2=e1-1; e2>=0 && made<cap; e2--) {
        var A=events[e1], B=events[e2], gap=A.b-B.b; if(gap>16) break; if(A.s!==B.s || A.r===B.r) continue;
        var flare=clamp01(1-Math.abs((A.b-n+1)-cometX)/3), fresh=clamp01(1-(lastBar-A.b)/90);
        sets.push({label:'web',data:[pt(B.b-n+1,B.r),pt(A.b-n+1,A.r)],showLine:true,borderColor:rgba(A.s>0?TH.a1:TH.a2,0.05+0.30*(1-gap/16)*fresh+0.48*flare),borderWidth:1+Math.round(flare),pointRadius:0,fill:false,tension:0.3,order:4}); made++; }
    sets.push({label:'cells',data:cells,showLine:false,pointStyle:'rectRot',pointRadius:sizes,pointBackgroundColor:cols,pointBorderWidth:0,order:10});
    var comet=[], ccol=[], crad=[], q; for(q=0;q<6;q++){ var cx=cometX-q*2.2; if(cx<-162)break; comet.push(pt(cx,ROW.PIVOT)); ccol.push(q===0?rgba(TH.warn,0.98):rgba('#FFFFFF',clamp01(.75-.14*q))); crad.push(q===0?6:Math.max(1.5,5-.8*q)); }
    sets.push({label:'comet',data:comet,showLine:false,pointStyle:'circle',pointRadius:crad,pointBackgroundColor:ccol,pointBorderWidth:0,order:45});
    sets.push({label:'now',data:[pt(0,-.8),pt(0,5.8)],showLine:true,borderColor:rgba(TH.a1,.50),borderWidth:1.5,borderDash:[3,3],pointRadius:0,fill:false,order:20});
    sets.push({label:'scan',data:[pt(-162+((CLOCK.beat*11)%162),-.8),pt(-162+((CLOCK.beat*11)%162),5.8)],showLine:true,borderColor:rgba('#FFFFFF',.10),borderWidth:7,pointRadius:0,fill:false,order:3});
    return {sets:sets,xmin:-162,xmax:2,ymin:-.8,ymax:5.8};}
// HARMONIC ROSETTE -------------------------------------------------------------------------------
function viewHarmonicRosette() {
    var sets = [];
    var WIN = clamp(Math.round(L_norm * 1.15), 120, 200);
    var rStart = Math.max(ENGINE_START, n - WIN), cnt = Math.max(2, n - rStart);
    var XW = 0.36, CX = 0, CY = 0;
    var TURNS = 2.15, PHI0 = -Math.PI / 2;
    function P(rr, ang) { return pt(CX + Math.cos(ang) * rr * XW, CY + Math.sin(ang) * rr); }
    function tOf(k) { return (k - rStart) / (cnt - 1); }
    function angOf(k) { return PHI0 + tOf(k) * TURNS * 2 * Math.PI; }
    function railOf(k) { return 1.9 + tOf(k) * 2.6; }
    function arcPts(rArc, a0, a1, steps) { var pA = [], qA; for (qA = 0; qA <= steps; qA++) pA.push(P(rArc, a0 + (a1 - a0) * qA / steps)); return pA; }
    var domV = nz(kValley[lastBar], 0) >= nz(kPeak[lastBar], 0);
    var liveCol = domV ? TH.a1 : TH.a2;
    var pulse = pulse01(0.9, 0);
    var pal = [], pk, hexP;
    for (pk = 0; pk < 12; pk++) {
        var tP = pk / 11;
        hexP = TH.a1;
        try { hexP = tP < 0.5 ? tiny.mix(TH.a1, TH.a3, tP * 2).toHexString() : tiny.mix(TH.a3, TH.a2, (tP - 0.5) * 2).toHexString(); } catch (eP) { hexP = TH.a1; }
        pal.push(hexP); }
    var FN = 128, re = [], im = make(FN, 0), fi, sMean = 0;
    for (fi = 0; fi < FN; fi++) {
        var ki = n - FN + fi, osc = 0;
        if (ki >= 0) osc = clamp11((nz(kValley[ki], 0) - nz(kPeak[ki], 0)) * 1.7) + 0.30 * clamp11(nz(dtsArr[ki], 0) / 3);
        re.push(osc); sMean += osc; }
    sMean /= FN;
    for (fi = 0; fi < FN; fi++) re[fi] = (re[fi] - sMean) * (0.5 - 0.5 * Math.cos(2 * Math.PI * fi / (FN - 1)));
    var jF, bitF, lenF;
    for (jF = 1, bitF = 0; jF < FN; jF++) {
        var bF = FN >> 1;
        for (; bitF & bF; bF >>= 1) bitF ^= bF;
        bitF ^= bF;
        if (jF < bitF) { var trF = re[jF]; re[jF] = re[bitF]; re[bitF] = trF; var tiF = im[jF]; im[jF] = im[bitF]; im[bitF] = tiF; } }
    for (lenF = 2; lenF <= FN; lenF <<= 1) {
        var angF = -2 * Math.PI / lenF, wrF = Math.cos(angF), wiF = Math.sin(angF);
        for (jF = 0; jF < FN; jF += lenF) {
            var crF = 1, ciF = 0, hF;
            for (hF = 0; hF < lenF / 2; hF++) {
                var i0F = jF + hF, i1F = jF + hF + lenF / 2;
                var vrF = re[i1F] * crF - im[i1F] * ciF, viF = re[i1F] * ciF + im[i1F] * crF;
                re[i1F] = re[i0F] - vrF; im[i1F] = im[i0F] - viF; re[i0F] += vrF; im[i0F] += viF;
                var ncrF = crF * wrF - ciF * wiF; ciF = crF * wiF + ciF * wrF; crF = ncrF; } } }
    var SPEC = 32, specV = [], sMx = 1e-9, cNum = 0, cDen = 0, bS, mF;
    for (bS = 1; bS <= SPEC; bS++) { mF = Math.sqrt(re[bS] * re[bS] + im[bS] * im[bS]); specV.push(mF); sMx = Math.max(sMx, mF); }
    for (bS = 0; bS < SPEC; bS++) { specV[bS] = clamp01(specV[bS] / sMx); cNum += (bS + 1) * specV[bS]; cDen += specV[bS]; }
    var centroidBin = cDen > 0 ? cNum / cDen : SPEC / 2;
    var centroidAng = PHI0 + centroidBin / SPEC * 2 * Math.PI;
    var ringCfg = [[2.3, [3, 7], 0.13, TH.info, 55], [3.45, [2, 5], 0.15, TH.info, 80], [4.6, [4, 9], 0.17, TH.dim, 40], [7.45, [1, 11], 0.10, TH.warn, 65]];
    var rC, qC2;
    for (rC = 0; rC < ringCfg.length; rC++) {
        var ptsC = [];
        for (qC2 = 0; qC2 <= 96; qC2++) ptsC.push(P(ringCfg[rC][0], qC2 / 96 * 2 * Math.PI));
        ptsC.push(ptsC[0]);
        sets.push({ label: 'datumRing' + rC, data: ptsC, showLine: true, fill: false, borderColor: rgba(ringCfg[rC][3], ringCfg[rC][2]), borderWidth: 1, borderDash: ringCfg[rC][1], borderDashOffset: march(ringCfg[rC][4]), pointRadius: 0, tension: 0, order: 3 }); }
    var bezel = [], bezR = [], bezC = [];
    for (qC2 = 0; qC2 < 72; qC2++) {
        var angB = qC2 / 72 * 2 * Math.PI;
        bezel.push(P(7.45, angB));
        bezR.push(qC2 % 6 === 0 ? 2.1 : 1.2);
        bezC.push(rgba(qC2 % 6 === 0 ? TH.warn : TH.dim, qC2 % 6 === 0 ? 0.40 : 0.20)); }
    sets.push({ label: 'bezel', data: bezel, showLine: false, pointStyle: 'rectRot', pointRadius: bezR, pointBackgroundColor: bezC, pointBorderWidth: 0, order: 4 });
    var qualNow = nz(qualArr[lastBar], 0);
    sets.push({ label: 'qualArc', data: arcPts(1.66, -Math.PI / 2, -Math.PI / 2 + 2 * Math.PI * clamp01(qualNow / 0.9), 48), showLine: true, fill: false, borderColor: rgba(TH.a3, 0.85), borderWidth: 2.4, pointRadius: 0, tension: 0, order: 40 });
    sets.push({ label: 'chopArc', data: arcPts(1.44, -Math.PI / 2, -Math.PI / 2 + 2 * Math.PI * clamp01(1 - nz(chopRank[lastBar], 0.5)), 48), showLine: true, fill: false, borderColor: rgba(TH.info, 0.60), borderWidth: 1.8, pointRadius: 0, tension: 0, order: 39 });
    var hN;
    for (hN = 0; hN < 4; hN++) sets.push({ label: 'coreHalo' + hN, data: [pt(CX, CY)], showLine: false, pointStyle: 'circle', pointRadius: [(5.4 - hN * 1.15) + pulse * 1.2], pointBackgroundColor: [rgba(liveCol, 0.04 + hN * 0.05)], pointBorderWidth: 0, order: 42 + hN });
    sets.push({ label: 'coreStar', data: [pt(CX, CY)], showLine: false, pointStyle: 'star', pointRadius: [4.2], pointBackgroundColor: [liveCol], pointBorderColor: ['#FFFFFF'], pointBorderWidth: 1.2, order: 48 });
    sets.push({ label: 'coreCrossV', data: [pt(CX, CY - 1.05), pt(CX, CY + 1.05)], showLine: true, fill: false, borderColor: rgba(TH.txt, 0.30), borderWidth: 1, pointRadius: 0, tension: 0, order: 41 });
    sets.push({ label: 'coreCrossH', data: [pt(CX - 1.05 * XW, CY), pt(CX + 1.05 * XW, CY)], showLine: true, fill: false, borderColor: rgba(TH.txt, 0.30), borderWidth: 1, pointRadius: 0, tension: 0, order: 41 });
    var cohSum = 0, cW = 0, kR;
    for (kR = rStart; kR < n; kR++) { cohSum += Math.max(nz(kPeak[kR], 0), nz(kValley[kR], 0)); cW++; }
    var cohN = clamp01((cW ? cohSum / cW : 0) / 0.55);
    var petalK = [2, 3, 5, 8], petalR = [6.35, 5.90, 5.45, 5.00], petalA = [0.030, 0.042, 0.058, 0.075];
    var petalCol = [TH.a1, TH.a3, TH.a2, TH.txt];
    var rosL;
    for (rosL = 0; rosL < 4; rosL++) {
        var dirL = rosL % 2 === 0 ? 1 : -1;
        var phL = dirL * CLOCK.slow * (0.045 + 0.014 * rosL);
        var breathL = breathe(1.0, 0.035, 0.16 + 0.03 * rosL, rosL * 1.3);
        var ampL = petalA[rosL] * (0.55 + 0.90 * cohN) * breathL;
        var rosPts = [], qR;
        for (qR = 0; qR <= 220; qR++) {
            var thR = qR / 220 * 2 * Math.PI;
            var rR2 = petalR[rosL] * breathL * (1 + ampL * Math.cos(petalK[rosL] * thR + phL) + 0.30 * ampL * Math.cos((petalK[rosL] + 2) * thR - phL * 1.7));
            rosPts.push(P(rR2, thR)); }
        rosPts.push(rosPts[0]);
        sets.push({ label: 'rosette' + rosL, data: rosPts, showLine: true, fill: false, borderColor: rgba(petalCol[rosL], rosL === 3 ? 0.13 : 0.19 + 0.02 * rosL), borderWidth: rosL === 1 ? 1.8 : 1.25, borderDash: rosL === 2 ? [2, 6] : [], borderDashOffset: rosL === 2 ? march(70) : 0, pointRadius: 0, tension: 0, order: 12 + rosL }); }
    var smV = make(n, 0), smP = make(n, 0), kSM, eV = nz(kValley[Math.max(0, rStart - 1)], 0), eP = nz(kPeak[Math.max(0, rStart - 1)], 0);
    for (kSM = Math.max(0, rStart - 1); kSM < n; kSM++) {
        eV = eV * 0.66 + nz(kValley[kSM], 0) * 0.34;
        eP = eP * 0.66 + nz(kPeak[kSM], 0) * 0.34;
        smV[kSM] = eV; smP[kSM] = eP; }
    var railPts = [], armV = [], armP = [], armB = [], railTk = [], kA, kvA = 0, kpA = 0;
    for (kA = rStart; kA < n; kA++) {
        var tA = angOf(kA), rRl = railOf(kA);
        kvA = nz(smV[kA], 0); kpA = nz(smP[kA], 0);
        railPts.push(P(rRl, tA));
        armV.push(P(rRl + 0.26 + kvA * 1.35, tA));
        armP.push(P(rRl - 0.26 - kpA * 1.35, tA));
        armB.push(P(rRl + clamp11(nz(DirBias[kA], 0)) * 0.7, tA));
        if ((kA - rStart) % 10 === 0) railTk.push(P(rRl, tA)); }
    sets.push({ label: 'spiralRail', data: railPts, showLine: true, fill: false, borderColor: rgba(TH.dim, 0.28), borderWidth: 1.1, borderDash: [2, 6], borderDashOffset: march(90), pointRadius: 0, tension: 0.25, order: 8 });
    sets.push({ label: 'railTicks', data: railTk, showLine: false, pointStyle: 'rectRot', pointRadius: 1.6, pointBackgroundColor: rgba(TH.dim, 0.35), pointBorderWidth: 0, order: 9 });
    sets.push({ label: 'armValley', data: armV, showLine: true, fill: false, borderColor: rgba(TH.a1, 0.78), borderWidth: 2.0, pointRadius: 0, tension: 0.30, order: 26 });
    sets.push({ label: 'armPeak', data: armP, showLine: true, fill: false, borderColor: rgba(TH.a2, 0.72), borderWidth: 2.0, pointRadius: 0, tension: 0.30, order: 27 });
    sets.push({ label: 'armBias', data: armB, showLine: true, fill: false, borderColor: rgba(TH.warn, 0.50), borderWidth: 1.2, borderDash: [5, 4], borderDashOffset: march(60), pointRadius: 0, tension: 0.30, order: 28 });
    var firePts = [], fireC = [], fireR = [], exPts = [], kF;
    for (kF = rStart; kF < n; kF++) {
        var tF = angOf(kF), rF = railOf(kF);
        if (longConf[kF] || shortConf[kF]) {
            var longF = !!longConf[kF];
            firePts.push(P(rF + (longF ? 0.30 : -0.30), tF));
            fireC.push(rgba(longF ? TH.bull : TH.bear, 0.95));
            fireR.push(2.2 + 1.9 * clamp01(Math.abs(nz(fireRMap[kF], 0.6)) / 2)); }
        if (exitSigArr[kF]) exPts.push(P(rF + clamp11(nz(DirBias[kF], 0)) * 0.8, tF)); }
    if (firePts.length) sets.push({ label: 'fireNodes', data: firePts, showLine: false, pointStyle: 'star', pointRadius: fireR, pointBackgroundColor: fireC, pointBorderColor: fireC, pointBorderWidth: 1, order: 44 });
    if (exPts.length) sets.push({ label: 'exitNodes', data: exPts, showLine: false, pointStyle: 'circle', pointRadius: 2.3, pointBackgroundColor: rgba(TH.dim, 0.05), pointBorderColor: rgba(TH.txt, 0.55), pointBorderWidth: 1, order: 43 });
    var armDom = domV ? armV : armP;
    var gI = Math.floor(travel(armDom.length, 1.4)), gPts = [], gC2 = [], gR2 = [], qG;
    for (qG = 0; qG < 5; qG++) {
        var gi2 = (gI - qG * 4 + armDom.length * 2) % armDom.length;
        gPts.push(armDom[gi2]);
        gC2.push(rgba('#FFFFFF', 0.90 - qG * 0.17));
        gR2.push(3.9 - qG * 0.65); }
    sets.push({ label: 'armGlint', data: gPts, showLine: false, pointStyle: 'circle', pointRadius: gR2, pointBackgroundColor: gC2, pointBorderWidth: 0, order: 58 });
    var thEnd = angOf(n - 1), rEnd = railOf(n - 1) + 0.30;
    sets.push({ label: 'nowBeam', data: [P(4.72, thEnd), P(7.45, thEnd)], showLine: true, fill: false, borderColor: rgba(liveCol, 0.35), borderWidth: 5, pointRadius: 0, tension: 0, order: 46 });
    sets.push({ label: 'nowBeamCore', data: [P(4.72, thEnd), P(7.45, thEnd)], showLine: true, fill: false, borderColor: rgba('#FFFFFF', 0.70), borderWidth: 1.2, pointRadius: 0, tension: 0, order: 47 });
    for (hN = 0; hN < 3; hN++) sets.push({ label: 'nowHalo' + hN, data: [P(rEnd, thEnd)], showLine: false, pointStyle: 'circle', pointRadius: [(7.6 - hN * 2.3) + pulse * 1.8], pointBackgroundColor: [rgba(liveCol, 0.05 + hN * 0.05)], pointBorderWidth: 0, order: 50 + hN });
    sets.push({ label: 'nowStar', data: [P(rEnd, thEnd)], showLine: false, pointStyle: 'star', pointRadius: [5.8], pointBackgroundColor: [liveCol], pointBorderColor: ['#FFFFFF'], pointBorderWidth: 1.4, order: 55 });
    var SEC = 24, sE = make(SEC, 0), sS = make(SEC, 0), sN = make(SEC, 0), kS;
    for (kS = rStart; kS < n; kS++) {
        var a01 = (((angOf(kS) - PHI0) / (2 * Math.PI)) % 1 + 1) % 1;
        var bI = clamp(Math.floor(a01 * SEC), 0, SEC - 1);
        sE[bI] += Math.max(nz(kPeak[kS], 0), nz(kValley[kS], 0));
        sS[bI] += nz(kValley[kS], 0) >= nz(kPeak[kS], 0) ? 1 : -1;
        sN[bI]++; }
    var sMx2 = 1e-9, bX;
    for (bX = 0; bX < SEC; bX++) { sE[bX] = sN[bX] ? sE[bX] / sN[bX] : 0; sMx2 = Math.max(sMx2, sE[bX]); }
    var spkSeg = [], spkTip = [], spkC = [], spkR = [];
    for (bX = 0; bX < SEC; bX++) {
        var nnS = clamp01(sE[bX] / sMx2);
        var aM = PHI0 + (bX + 0.5) / SEC * 2 * Math.PI;
        var colS = sS[bX] >= 0 ? TH.a1 : TH.a2;
        spkSeg.push(P(4.74, aM)); spkSeg.push(P(4.74 + 0.45 + 1.30 * nnS, aM)); spkSeg.push({ x: null, y: null });
        spkTip.push(P(4.74 + 0.45 + 1.30 * nnS, aM));
        spkC.push(rgba(colS, 0.30 + 0.40 * nnS));
        spkR.push(1.4 + 1.8 * nnS); }
    sets.push({ label: 'phaseSpokes', data: spkSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.info, 0.18), borderWidth: 1.3, pointRadius: 0, tension: 0, order: 10 });
    sets.push({ label: 'spokeTips', data: spkTip, showLine: false, pointStyle: 'rectRot', pointRadius: spkR, pointBackgroundColor: spkC, pointBorderWidth: 0, order: 11 });
    var specSeg = [], specTip = [], specC = [], specR = [];
    for (bX = 0; bX < SPEC; bX++) {
        var aZ = PHI0 + (bX + 0.5) / SPEC * 2 * Math.PI, hZ = 0.12 + 0.58 * specV[bX];
        specSeg.push(P(6.62, aZ)); specSeg.push(P(6.62 + hZ, aZ)); specSeg.push({ x: null, y: null });
        specTip.push(P(6.62 + hZ, aZ));
        specC.push(rgba(pal[Math.round(specV[bX] * 11)], 0.35 + 0.55 * specV[bX]));
        specR.push(1.0 + 2.0 * specV[bX]); }
    sets.push({ label: 'spectrumRing', data: specSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.info, 0.25), borderWidth: 1.4, pointRadius: 0, tension: 0, order: 14 });
    sets.push({ label: 'spectrumTips', data: specTip, showLine: false, pointStyle: 'circle', pointRadius: specR, pointBackgroundColor: specC, pointBorderWidth: 0, order: 15 });
    sets.push({ label: 'centroidArc', data: arcPts(7.30, centroidAng - 0.42, centroidAng + 0.42, 24), showLine: true, fill: false, borderColor: rgba(TH.warn, 0.85), borderWidth: 2.2, pointRadius: 0, tension: 0, order: 45 });
    sets.push({ label: 'centroidMark', data: [P(7.30, centroidAng)], showLine: false, pointStyle: 'rectRot', pointRadius: 2.6, pointBackgroundColor: rgba(TH.warn, 0.95), pointBorderWidth: 0, order: 45 });
    var SLICES = 16, BANDS = 8, WINW = 64;
    var tideX0 = -12.9, tideX1 = -5.6, tideYTop = 6.8, tideYBot = -4.2;
    var tideBaseY = -5.0;
    var tideBW = (tideX1 - tideX0) / BANDS, tideRH = (tideYTop - tideYBot) / SLICES;
    var stride2 = Math.max(2, Math.floor(cnt / SLICES));
    var tideE = [], centroidTrail = [], sl2, b2, qT2;
    for (sl2 = 0; sl2 < SLICES; sl2++) {
        var endSl = n - 1 - (SLICES - 1 - sl2) * stride2;
        var startSl = Math.max(0, endSl - WINW + 1), lenSl = Math.max(1, endSl - startSl + 1);
        var reT = [], imT = make(WINW, 0), meanT = 0;
        for (qT2 = 0; qT2 < WINW; qT2++) {
            var ki2 = startSl + Math.floor(qT2 * lenSl / WINW), o2 = 0;
            if (ki2 >= 0 && ki2 < n) o2 = clamp11((nz(kValley[ki2], 0) - nz(kPeak[ki2], 0)) * 1.7) + 0.30 * clamp11(nz(dtsArr[ki2], 0) / 3);
            reT.push(o2); meanT += o2; }
        meanT /= WINW;
        for (qT2 = 0; qT2 < WINW; qT2++) reT[qT2] = (reT[qT2] - meanT) * (0.5 - 0.5 * Math.cos(2 * Math.PI * qT2 / (WINW - 1)));
        var bF3;
        for (jF = 1, bitF = 0; jF < WINW; jF++) {
            bF3 = WINW >> 1;
            for (; bitF & bF3; bF3 >>= 1) bitF ^= bF3;
            bitF ^= bF3;
            if (jF < bitF) { var tr3 = reT[jF]; reT[jF] = reT[bitF]; reT[bitF] = tr3; var ti3 = imT[jF]; imT[jF] = imT[bitF]; imT[bitF] = ti3; } }
        for (lenF = 2; lenF <= WINW; lenF <<= 1) {
            angF = -2 * Math.PI / lenF; wrF = Math.cos(angF); wiF = Math.sin(angF);
            for (jF = 0; jF < WINW; jF += lenF) {
                crF = 1; ciF = 0;
                for (hF = 0; hF < lenF / 2; hF++) {
                    i0F = jF + hF; i1F = jF + hF + lenF / 2;
                    vrF = reT[i1F] * crF - imT[i1F] * ciF; viF = reT[i1F] * ciF + imT[i1F] * crF;
                    reT[i1F] = reT[i0F] - vrF; imT[i1F] = imT[i0F] - viF; reT[i0F] += vrF; imT[i0F] += viF;
                    ncrF = crF * wrF - ciF * wiF; ciF = crF * wiF + ciF * wrF; crF = ncrF; } } }
        var rowE = [], rowMx = 1e-9, cN2 = 0, cD2 = 0;
        for (b2 = 1; b2 <= BANDS; b2++) { var eB2 = Math.sqrt(reT[b2] * reT[b2] + imT[b2] * imT[b2]); rowE.push(eB2); if (eB2 > rowMx) rowMx = eB2; }
        for (b2 = 0; b2 < BANDS; b2++) { rowE[b2] = clamp01(rowE[b2] / rowMx); cN2 += (b2 + 0.5) * rowE[b2]; cD2 += rowE[b2]; }
        tideE.push(rowE);
        centroidTrail.push(cD2 > 0 ? cN2 / cD2 : BANDS / 2); }
    var cellPts = [], cellCols = [], cellRads = [], weaveSeg = [], ridgePts = [], snakePts = [];
    var bX2;
    for (sl2 = 0; sl2 < SLICES; sl2++) {
        var rowY = tideYTop - (sl2 + 0.5) * tideRH;
        var argMx = 0;
        for (bX2 = 1; bX2 < BANDS; bX2++) if (tideE[sl2][bX2] > tideE[sl2][argMx]) argMx = bX2;
        weaveSeg.push(pt(tideX0, rowY)); weaveSeg.push(pt(tideX1, rowY)); weaveSeg.push({ x: null, y: null });
        ridgePts.push(pt(tideX0 + (argMx + 0.5) * tideBW, rowY));
        snakePts.push(pt(tideX0 + centroidTrail[sl2] / BANDS * (tideX1 - tideX0), rowY));
        for (bX2 = 0; bX2 < BANDS; bX2++) {
            var eC2 = tideE[sl2][bX2];
            cellPts.push(pt(tideX0 + (bX2 + 0.5) * tideBW, rowY));
            cellCols.push(rgba(pal[Math.round(eC2 * 11)], 0.30 + 0.62 * eC2));
            cellRads.push(1.0 + 2.0 * eC2); } }
    sets.push({ label: 'tideCells', data: cellPts, showLine: false, pointStyle: 'rect', pointRadius: cellRads, pointBackgroundColor: cellCols, pointBorderWidth: 0, order: 8 });
    sets.push({ label: 'tideWeave', data: weaveSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.dim, 0.08), borderWidth: 1, pointRadius: 0, tension: 0, order: 7 });
    sets.push({ label: 'tideRidge', data: ridgePts, showLine: true, fill: false, borderColor: rgba(TH.warn, 0.55), borderWidth: 1.5, pointRadius: 0, tension: 0.45, order: 18 });
    sets.push({ label: 'centroidSnake', data: snakePts, showLine: true, fill: false, borderColor: rgba('#FFFFFF', 0.35), borderWidth: 1.2, pointRadius: 0, tension: 0.45, order: 19 });
    var snakeHead = [], shC = [], shR = [], qS2;
    for (qS2 = 1; qS2 <= Math.min(6, snakePts.length); qS2++) {
        snakeHead.push(snakePts[snakePts.length - qS2]);
        shC.push(rgba(TH.a3, 0.85 - qS2 * 0.12));
        shR.push(Math.max(0.8, 2.6 - qS2 * 0.35)); }
    sets.push({ label: 'snakeHead', data: snakeHead, showLine: false, pointStyle: 'circle', pointRadius: shR, pointBackgroundColor: shC, pointBorderWidth: 0, order: 20 });
    var ladSeg = [], ladTip = [], ladC = [], ladR = [], lastRow = tideE[SLICES - 1], bL2;
    for (bL2 = 0; bL2 < BANDS; bL2++) {
        var lh2 = 0.15 + 1.35 * lastRow[bL2], lx2 = tideX0 + (bL2 + 0.5) * tideBW;
        ladSeg.push(pt(lx2, tideBaseY)); ladSeg.push(pt(lx2, tideBaseY + lh2)); ladSeg.push({ x: null, y: null });
        ladTip.push(pt(lx2, tideBaseY + lh2));
        ladC.push(rgba(pal[Math.round(lastRow[bL2] * 11)], 0.35 + 0.55 * lastRow[bL2]));
        ladR.push(1.2 + 1.5 * lastRow[bL2]); }
    sets.push({ label: 'tideLadder', data: ladSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.info, 0.22), borderWidth: 1.4, pointRadius: 0, tension: 0, order: 9 });
    sets.push({ label: 'tideLadderTips', data: ladTip, showLine: false, pointStyle: 'circle', pointRadius: ladR, pointBackgroundColor: ladC, pointBorderWidth: 0, order: 10 });
    sets.push({ label: 'tideBase', data: [pt(tideX0, tideBaseY), pt(tideX1, tideBaseY)], showLine: true, fill: false, borderColor: rgba(TH.dim, 0.32), borderWidth: 1, borderDash: [2, 4], borderDashOffset: march(85), pointRadius: 0, tension: 0, order: 4 });
    var NLAY = 4, layN = [5, 7, 6, 3], layX = [8.55, 10.25, 11.95, 13.35];
    var poolA = [kPeak, kValley, dtsArr, DirBias, chopRank, entArr, qualArr, regStress];
    function sqN(p2, v2) { if (p2 === 2) return clamp01((v2 + 3) / 6); if (p2 === 3) return clamp01((v2 + 1) / 2); if (p2 === 4 || p2 === 5) return clamp01(1 - v2); return clamp01(v2); }
    var neurons = [], nId, nY, nX, nP, nW, nTotal = 0, L4;
    for (L4 = 0; L4 < NLAY; L4++) {
        for (nId = 0; nId < layN[L4]; nId++) {
            nP = (nTotal * 5 + L4 * 3) % poolA.length;
            nW = 10 + 8 * Math.floor(hashRand(nTotal * 7 + 1) * 6);
            nY = -5.3 + (nId + 0.5) / layN[L4] * 10.6 + (hashRand(nTotal * 17 + 3) - 0.5) * 0.9;
            nX = layX[L4] + (hashRand(nTotal * 29 + 11) - 0.5) * 0.7;
            neurons.push({ x: nX, y: nY, layer: L4, pool: nP, win: nW, id: nTotal }); nTotal++; } }
    var layStart = [0, layN[0], layN[0] + layN[1], layN[0] + layN[1] + layN[2]];
    var TRN = 56, trails = [], ti2, acc, bb;
    for (ti2 = 0; ti2 < nTotal; ti2++) {
        var trA = [], startB = Math.max(0, n - 1 - TRN - 6);
        acc = sqN(neurons[ti2].pool, nz(poolA[neurons[ti2].pool][startB], 0));
        for (bb = startB; bb < n; bb++) {
            acc = acc * 0.86 + sqN(neurons[ti2].pool, nz(poolA[neurons[ti2].pool][bb], 0)) * 0.14;
            trA.push(acc); }
        trails.push(trA); }
    function corrT(aT, bT) {
        var len2 = Math.min(aT.length, bT.length), q2;
        if (len2 < 12) return 0;
        var m2 = 0, m3 = 0;
        for (q2 = 0; q2 < len2; q2++) { m2 += aT[q2]; m3 += bT[q2]; }
        m2 /= len2; m3 /= len2;
        var num2 = 0, dA = 0, dB = 0;
        for (q2 = 0; q2 < len2; q2++) { var da2 = aT[q2] - m2, db2 = bT[q2] - m3; num2 += da2 * db2; dA += da2 * da2; dB += db2 * db2; }
        return (dA > 1e-12 && dB > 1e-12) ? num2 / Math.sqrt(dA * dB) : 0; }
    var eCands = [], eL, eA, eB;
    for (eL = 0; eL < NLAY - 1; eL++) {
        for (eA = 0; eA < layN[eL]; eA++) for (eB = 0; eB < layN[eL + 1]; eB++) {
            var idA2 = layStart[eL] + eA, idB2 = layStart[eL + 1] + eB;
            eCands.push({ a: idA2, b: idB2, r: corrT(trails[idA2], trails[idB2]) }); } }
    eCands.sort(function (x1, x2) { return Math.abs(x2.r) - Math.abs(x1.r); });
    var kept = [], degOut = make(nTotal, 0), eC2;
    for (eC2 = 0; eC2 < eCands.length; eC2++) {
        var cE = eCands[eC2];
        if (Math.abs(cE.r) < 0.30 || degOut[cE.a] >= 3 || kept.length >= 44) continue;
        kept.push(cE); degOut[cE.a]++; }
    var growEpoch = Math.floor(CLOCK.beat / 3), gProg = clamp01(CLOCK.beat / 3 - growEpoch);
    var rejected = [];
    for (eC2 = 0; eC2 < eCands.length && rejected.length < 26; eC2++) {
        var rj = eCands[eC2];
        if (Math.abs(rj.r) >= 0.18 && Math.abs(rj.r) < 0.30) rejected.push(rj); }
    var growE = rejected.length ? rejected[growEpoch % rejected.length] : null;
    var pruneE = kept.length ? kept[(growEpoch * 7 + 3) % kept.length] : null;
    if (pruneE && Math.abs(pruneE.r) > 0.45) pruneE = null;
    var posStrong = [], posWeak = [], negStrong = [], negWeak = [];
    for (eC2 = 0; eC2 < kept.length; eC2++) {
        var kE = kept[eC2];
        if (pruneE && kE.a === pruneE.a && kE.b === pruneE.b) continue;
        var pA2 = pt(neurons[kE.a].x, neurons[kE.a].y), pB2 = pt(neurons[kE.b].x, neurons[kE.b].y);
        var bucket = kE.r > 0 ? (Math.abs(kE.r) > 0.55 ? posStrong : posWeak) : (Math.abs(kE.r) > 0.55 ? negStrong : negWeak);
        bucket.push(pA2); bucket.push(pB2); bucket.push({ x: null, y: null }); }
    if (posStrong.length) sets.push({ label: 'edgesPosStrong', data: posStrong, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.a1, 0.36), borderWidth: 1.6, pointRadius: 0, tension: 0, order: 5 });
    if (posWeak.length) sets.push({ label: 'edgesPosWeak', data: posWeak, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.a1, 0.15), borderWidth: 1.0, pointRadius: 0, tension: 0, order: 5 });
    if (negStrong.length) sets.push({ label: 'edgesNegStrong', data: negStrong, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.a2, 0.30), borderWidth: 1.6, pointRadius: 0, tension: 0, order: 5 });
    if (negWeak.length) sets.push({ label: 'edgesNegWeak', data: negWeak, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.a2, 0.13), borderWidth: 1.0, pointRadius: 0, tension: 0, order: 5 });
    if (growE) {
        var gDots = [], gN3 = 9, q3b;
        for (q3b = 0; q3b < gN3; q3b++) {
            var f3b = gProg * (q3b + 1) / gN3;
            if (f3b > gProg) f3b = gProg;
            gDots.push(pt(neurons[growE.a].x + (neurons[growE.b].x - neurons[growE.a].x) * f3b, neurons[growE.a].y + (neurons[growE.b].y - neurons[growE.a].y) * f3b)); }
        sets.push({ label: 'edgeGrowing', data: gDots, showLine: false, pointStyle: 'circle', pointRadius: 1.7, pointBackgroundColor: rgba(TH.a3, 0.30 + 0.45 * gProg), pointBorderWidth: 0, order: 6 });
        sets.push({ label: 'edgeGhost', data: [pt(neurons[growE.a].x, neurons[growE.a].y), pt(neurons[growE.b].x, neurons[growE.b].y)], showLine: true, fill: false, borderColor: rgba(TH.a3, 0.10 + 0.12 * gProg), borderWidth: 1, borderDash: [2, 4], pointRadius: 0, tension: 0, order: 5 }); }
    if (pruneE) sets.push({ label: 'edgePruning', data: [pt(neurons[pruneE.a].x, neurons[pruneE.a].y), pt(neurons[pruneE.b].x, neurons[pruneE.b].y)], showLine: true, fill: false, borderColor: rgba(TH.dim, 0.30 * (1 - gProg)), borderWidth: 1, pointRadius: 0, tension: 0, order: 6 });
    var dendSeg = [], dW2;
    for (dW2 = 0; dW2 < 3; dW2++) {
        var srcD = neurons[dW2 * 2], dX = srcD.x, dY = srcD.y, st2;
        for (st2 = 0; st2 < 14; st2++) {
            var nx2 = dX + 0.40, ny2 = dY + (hashRand(dW2 * 91 + st2 * 7) - 0.5) * 1.15;
            dendSeg.push(pt(dX, dY)); dendSeg.push(pt(nx2, ny2)); dendSeg.push({ x: null, y: null });
            if (st2 === 7) {
                var fY = ny2 + (dW2 % 2 === 0 ? 0.55 : -0.55);
                dendSeg.push(pt(nx2, ny2)); dendSeg.push(pt(nx2 + 0.30, fY)); dendSeg.push({ x: null, y: null });
                var gx2, gy2 = fY;
                for (gx2 = 0; gx2 < 5; gx2++) {
                    dendSeg.push(pt(nx2 + 0.30 + gx2 * 0.40, gy2)); dendSeg.push(pt(nx2 + 0.30 + (gx2 + 1) * 0.40, gy2 + (hashRand(dW2 * 31 + gx2 * 13) - 0.5) * 0.9)); dendSeg.push({ x: null, y: null });
                    gy2 = gy2 + (hashRand(dW2 * 31 + gx2 * 13) - 0.5) * 0.9; } }
            dX = nx2; dY = ny2; } }
    sets.push({ label: 'dendrites', data: dendSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.info, 0.09), borderWidth: 1, pointRadius: 0, tension: 0, order: 3 });
    var lt24 = rList.slice(-24), wWins = 0, qW2, sumR24 = 0;
    for (qW2 = 0; qW2 < lt24.length; qW2++) { if (lt24[qW2] >= 0) wWins++; sumR24 += lt24[qW2]; }
    var wrNow = lt24.length ? wWins / lt24.length : 0;
    var outActs = [wrNow, clamp01(0.5 + (sumR24 / Math.max(1, lt24.length)) / 3), clamp01(lt24.length / 24)];
    var layPts = [[], [], [], []], layCols = [[], [], [], []], layRads = [[], [], [], []];
    for (ti2 = 0; ti2 < nTotal; ti2++) {
        var nE = neurons[ti2], tr2 = trails[ti2];
        var act2 = tr2.length ? tr2[tr2.length - 1] : 0;
        if (nE.layer === NLAY - 1) act2 = outActs[nE.id - layStart[NLAY - 1]];
        var slope2 = tr2.length > 6 ? act2 - tr2[tr2.length - 6] : 0;
        var flick2 = 0.12 * Math.sin(CLOCK.slow * 2.1 + ti2 * 1.7);
        var rad2 = 1.1 + 2.6 * clamp01(act2 + flick2);
        var col2 = rgba(slope2 >= 0 ? TH.a1 : TH.a2, 0.35 + 0.55 * act2);
        if (nE.layer === NLAY - 1) col2 = outActs[nE.id - layStart[NLAY - 1]] >= 0.5 ? rgba(TH.bull, 0.85) : rgba(TH.bear, 0.85);
        layPts[nE.layer].push(pt(nE.x, nE.y)); layCols[nE.layer].push(col2); layRads[nE.layer].push(rad2); }
    for (L4 = 0; L4 < NLAY; L4++) sets.push({ label: 'neuronsL' + L4, data: layPts[L4], showLine: false, pointStyle: 'circle', pointRadius: layRads[L4], pointBackgroundColor: layCols[L4], pointBorderWidth: 0, order: 20 });
    var fireSrcs = [], eBar;
    for (eBar = Math.max(0, n - 16); eBar < n; eBar++) {
        if (longConf[eBar]) fireSrcs.push({ age: n - 1 - eBar, dir: 1 });
        if (shortConf[eBar]) fireSrcs.push({ age: n - 1 - eBar, dir: -1 }); }
    var spontN = 0;
    for (ti2 = 0; ti2 < nTotal && spontN < 2; ti2++) {
        var tE = trails[ti2];
        if (tE.length > 8 && tE[tE.length - 1] > 0.74 && tE[tE.length - 5] <= 0.72) {
            fireSrcs.push({ age: 0, dir: tE[tE.length - 1] > tE[tE.length - 5] ? 1 : -1, nid: ti2 }); spontN++; } }
    var flashPts = [], flashR = [], flashC = [], pulsePts = [], pulseC = [], pulseR = [], glowSeg = [];
    var fI, fE, srcN, qN2, outs, d3, q3;
    for (fI = 0; fI < fireSrcs.length; fI++) {
        fE = fireSrcs[fI];
        srcN = null;
        if (fE.nid !== undefined) srcN = neurons[fE.nid];
        else {
            var wantPool = fE.dir > 0 ? 1 : 0;
            for (qN2 = 0; qN2 < layStart[1]; qN2++) if (neurons[qN2].pool === wantPool) { srcN = neurons[qN2]; break; }
            if (!srcN) srcN = neurons[0]; }
        var ph2 = ((CLOCK.beat * 0.55) + fE.age * 0.31) % 1;
        flashPts.push(pt(srcN.x, srcN.y)); flashR.push(2.2 + 9.5 * ph2); flashC.push(rgba('#FFFFFF', (1 - ph2) * 0.42));
        outs = [];
        for (eC2 = 0; eC2 < kept.length && outs.length < 2; eC2++) if (kept[eC2].a === srcN.id) outs.push(kept[eC2]);
        for (d3 = 0; d3 < outs.length; d3++) {
            var oE = outs[d3], A3 = neurons[oE.a], B3 = neurons[oE.b];
            glowSeg.push(pt(A3.x, A3.y)); glowSeg.push(pt(B3.x, B3.y)); glowSeg.push({ x: null, y: null });
            for (q3 = 0; q3 < 6; q3++) {
                var f4 = (ph2 + q3 * 0.14) % 1;
                pulsePts.push(pt(A3.x + (B3.x - A3.x) * f4, A3.y + (B3.y - A3.y) * f4));
                pulseC.push(rgba('#FFFFFF', 0.85 * (1 - q3 / 6)));
                pulseR.push(2.3 - q3 * 0.25); }
            var outs2 = [];
            for (eC2 = 0; eC2 < kept.length && outs2.length < 1; eC2++) if (kept[eC2].a === oE.b) outs2.push(kept[eC2]);
            if (outs2.length && ph2 > 0.45) {
                var oE2 = outs2[0], C3 = neurons[oE2.b], f5 = (ph2 - 0.45) * 2.2;
                if (f5 > 1) f5 = 1;
                glowSeg.push(pt(B3.x, B3.y)); glowSeg.push(pt(C3.x, C3.y)); glowSeg.push({ x: null, y: null });
                for (q3 = 0; q3 < 5; q3++) {
                    var f6 = f5 * (q3 + 1) / 5;
                    pulsePts.push(pt(B3.x + (C3.x - B3.x) * f6, B3.y + (C3.y - B3.y) * f6));
                    pulseC.push(rgba(TH.a3, 0.75 * (1 - q3 / 5)));
                    pulseR.push(1.9 - q3 * 0.22); } } } }
    if (flashPts.length) sets.push({ label: 'neuronFlash', data: flashPts, showLine: false, pointStyle: 'circle', pointRadius: flashR, pointBackgroundColor: flashC, pointBorderWidth: 0, order: 30 });
    if (glowSeg.length) sets.push({ label: 'edgeGlow', data: glowSeg, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.a3, 0.30), borderWidth: 1.4, pointRadius: 0, tension: 0, order: 25 });
    if (pulsePts.length) sets.push({ label: 'synapsePulse', data: pulsePts, showLine: false, pointStyle: 'circle', pointRadius: pulseR, pointBackgroundColor: pulseC, pointBorderWidth: 0, order: 32 });
    var tick24 = [], q6;
    for (q6 = 0; q6 < lt24.length; q6++) {
        var r6 = lt24[q6], x6 = 8.7 + q6 * (4.6 / 23), up6 = r6 >= 0, ln6 = 0.24 + 0.60 * clamp01(Math.abs(r6) / 2);
        tick24.push(pt(x6, -6.55)); tick24.push(pt(x6, -6.55 + (up6 ? ln6 : -ln6))); tick24.push({ x: null, y: null }); }
    sets.push({ label: 'tickerBase', data: [pt(8.6, -6.55), pt(13.4, -6.55)], showLine: true, fill: false, borderColor: rgba(TH.dim, 0.30), borderWidth: 1, borderDash: [2, 4], borderDashOffset: march(85), pointRadius: 0, tension: 0, order: 4 });
    if (tick24.length) sets.push({ label: 'rTicker', data: tick24, showLine: true, fill: false, spanGaps: false, borderColor: rgba(TH.txt, 0.40), borderWidth: 1.4, pointRadius: 0, tension: 0, order: 6 });
    var wTop = [], wBot = [], xW3;
    for (xW3 = 0; xW3 <= 224; xW3++) {
        var xv = -13.4 + xW3 * (26.8 / 224);
        wTop.push(pt(xv, 6.95 + 0.30 * Math.sin(0.55 * xv + CLOCK.slow * 0.55) * (0.55 + 0.45 * Math.sin(0.19 * xv - CLOCK.slow * 0.30))));
        wBot.push(pt(xv, -6.95 + 0.30 * Math.sin(0.47 * xv - CLOCK.slow * 0.48) * (0.55 + 0.45 * Math.sin(0.17 * xv + CLOCK.slow * 0.34)))); }
    sets.push({ label: 'beatTop', data: wTop, showLine: true, fill: false, borderColor: rgba(TH.warn, 0.22), borderWidth: 1.1, pointRadius: 0, tension: 0, order: 2 });
    sets.push({ label: 'beatBottom', data: wBot, showLine: true, fill: false, borderColor: rgba(TH.a1, 0.22), borderWidth: 1.1, pointRadius: 0, tension: 0, order: 2 });
    var sx2 = -13.4 + travel(26.8, 2.4);
    sets.push({ label: 'scanBeam', data: [pt(sx2, -7.3), pt(sx2, 7.3)], showLine: true, fill: false, borderColor: rgba('#FFFFFF', 0.09), borderWidth: 6, pointRadius: 0, tension: 0, order: 1 });
    sets.push({ label: 'scanHead', data: [pt(sx2, 0)], showLine: false, pointStyle: 'circle', pointRadius: [2.2], pointBackgroundColor: [rgba('#FFFFFF', 0.35)], pointBorderWidth: 0, order: 1 });
    var tickM = Math.floor(CLOCK.render / 140), motes = [], mC = [], mR = [], qM;
    for (qM = 0; qM < 12; qM++) {
        motes.push(pt(-13.2 + hashRand(qM * 97 + tickM) * 26.4, -6.6 + hashRand(qM * 31 + tickM * 3) * 13.2));
        mC.push(rgba(TH.a3, 0.08 + 0.10 * hashRand(qM + tickM)));
        mR.push(1.1 + 1.5 * hashRand(qM * 7 + tickM)); }
    sets.push({ label: 'motes', data: motes, showLine: false, pointStyle: 'circle', pointRadius: mR, pointBackgroundColor: mC, pointBorderWidth: 0, order: 2 });
    var psi = CLOCK.slow * 0.45, tail = [], qT;
    sets.push({ label: 'radarSweep', data: [P(1.0, psi), P(7.45, psi)], showLine: true, fill: false, borderColor: rgba('#FFFFFF', 0.12), borderWidth: 3.5, pointRadius: 0, tension: 0, order: 1 });
    for (qT = 0; qT <= 14; qT++) tail.push(P(7.45 - qT * 0.16, psi - qT * 0.045));
    sets.push({ label: 'radarTail', data: tail, showLine: true, fill: false, borderColor: rgba('#FFFFFF', 0.05), borderWidth: 5, pointRadius: 0, tension: 0, order: 1 });
    return { sets: sets, xmin: -13.8, xmax: 13.8, ymin: -7.8, ymax: 7.8, spin: (CLOCK.slow * 57.3) % 360, centroid: centroidBin, coh: cohN }; }
if (i_manifold !== 'Off') {
    var VW = i_manifold === 'Signal Raster' ? viewSignalRaster() : viewHarmonicRosette();
    var isRos = i_manifold !== 'Signal Raster';
    var vTitle = isRos ? '⚰ PVK — HARMONIC ROSETTE · POLAR CONFLUENCE ENGINE' : '⚰ PVK — SIGNAL RASTER · EVENT WEB → CONFIRMED FIRES';
    var vLegend = isRos
        ? 'core arcs = quality & chop · guilloché = coherence rosette · spiral arms = causal history (valley out · peak in · bias between) · spokes = phase-sector energy · bezel = impulse FFT · left = phase-tide full-height scalogram · right = synapse neural lattice'
        : 'rows = pivot · delayed fractal · COG · value-area · FIRE · newest-first webbing · comet lights active pathways';
    var vAxis = isRos
        ? 'polar confluence instrument · 2.15-loop causal spiral · 24 phase sectors · radix-2 FFT N=128 · centroid bin ' + (isFinite(VW.centroid) ? VW.centroid.toFixed(1) : '—') + ' · coherence ' + (isFinite(VW.coh) ? VW.coh.toFixed(2) : '—') + ' · rotor ' + VW.spin.toFixed(0) + '° · phase tide 16×8 scalogram · synapse lattice 21 neurons · plane geometry only — zero 3D projection'
        : 'x = bars back from present · 160-bar field · event web cap 1500';
mRows.push(panelHeader(vTitle)); mRows.push(chartRow(VW.sets,VW.xmin,VW.xmax,VW.ymin,VW.ymax,MANIFOLD_H)); mRows.push(legendRow(vLegend)); mRows.push(axisRow(vAxis));}
paint_overlay('PVK Manifold', { position: 'bottom_left', order: 'above_all' }, { background: i_manifold !== 'Off' ? rgba(TH.bg, 0.96) : 'rgba(0,0,0,0)', border: i_manifold !== 'Off' ? '1px solid ' + rgba(TH.a1, 0.35) : '0px solid transparent', borderRadius: 8, width: i_manifold !== 'Off' ? '100%' : 1, rows: i_manifold !== 'Off' ? mRows : [] });
// ==============================================================================================
// ALERTS
// ==============================================================================================
var exitConf = make(n, false);
for (i = 0; i < n - 1; i++) exitConf[i] = exitSigArr[i];
register_signal(longConf, 'PVK: Long — swing or value-area break, bias up');
register_signal(shortConf, 'PVK: Short — swing or value-area break, bias down');
register_signal(exitConf, 'PVK: Exit — swing or value-area trade closed');
