ADT (Lower)

Indicator Disclaimer | Report this indicator

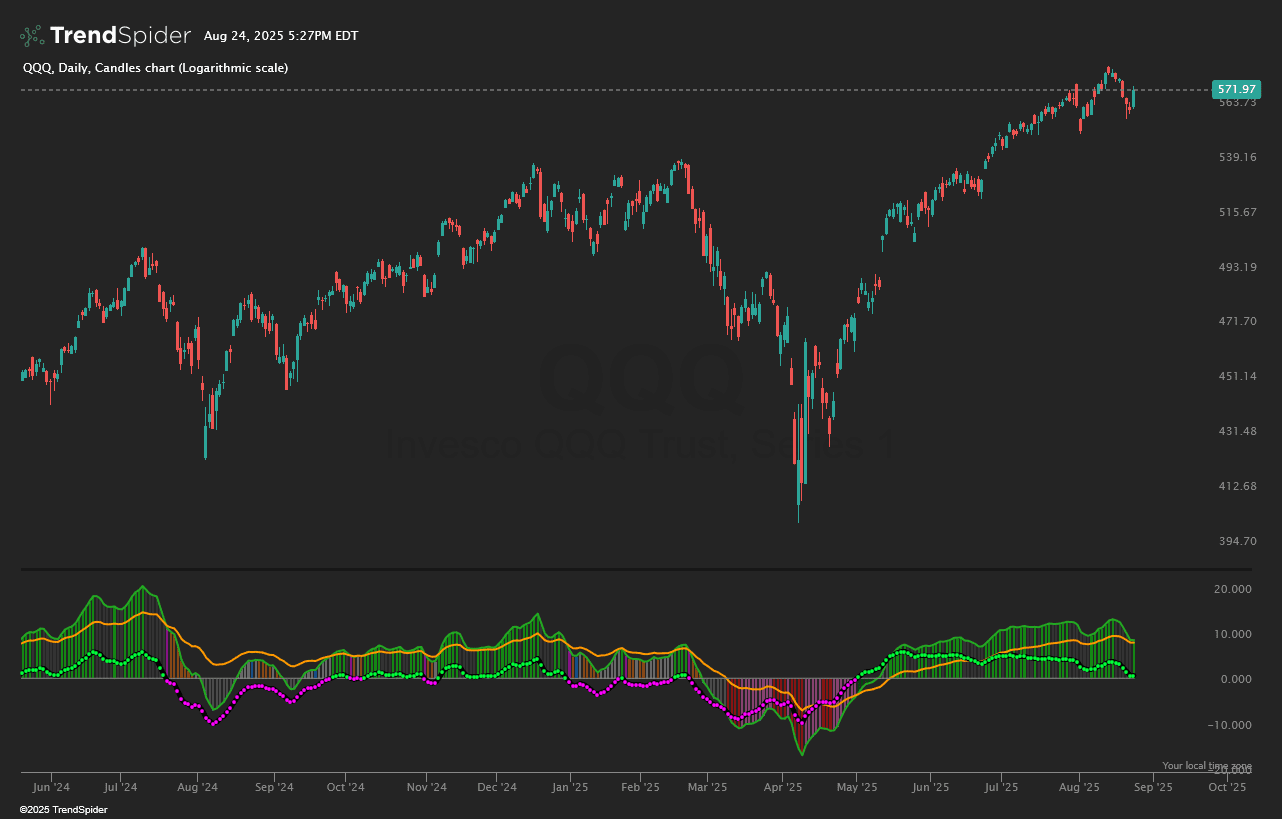

The indicator is based on a normalized sum of multi-lookback price changes divided by ATR) which is coined as ADT. It can show both price momentum and acceleration. The indicator exploits the change in the ADT for different timeframes, which is directly correlated with the price changes. Two MAs of ADT are considered: fast and slow (in the code:MovAve -fast and MovAvew – slow). Optional faster moving averages can be turned on in the code (MovAve4h, MovAve1h) for better timing.

In addition, there is a GAP curve (dotted line), which represents the fast MA – slow MA.

The color logic of this curve is as follows: Neon green above 0, magenta below 0 (dotted, with a subtle halo for contrast). Zero cross ≈ regime shift (bullish when it flips > 0; bearish when < 0). In addition, growing magnitude of the GAP = strengthening trend; shrinking = mean-reversion risk.

The color code for the histogram is as follows:

Magenta — Cross-down: fast just crossed below slow (fresh bearish risk).
Fast > Slow & both > 0
- Bright Green (UPTICK) — Bullish momentum increasing above zero.
- Dark Gray — Bullish but stalling/pausing above zero.
Fast > Slow & both < 0
- Dark Green — Bearish zone, but momentum improving (rising toward zero).
- Lime — Bearish zone, improvement not accelerating.
Fast < Slow & both > 0
- Orange/Red (DOWNTICK) — Positive zone but bearish widening (slow–fast spread increasing).
- Blue — Still positive, but fast slipping (weakening).
- Light Gray — Positive and drifting/flat.
Fast < Slow & both < 0
- Red — Bearish momentum building (getting more negative).
- Pink — Bearish but easing (less negative).
Gray — Neutral/transition state.

(Histogram is semi-transparent so lines stay readable.)

#TSBuild25

// ADT → MovAve Histogram + MA Lines + High-Contrast Gap (Lower)
describe_indicator('ADT  (Lower)', 'lower', { shortName: 'ADT-MA', warmup: 300 });

/* ===== Inputs ===== */
const MA_OPTIONS = ['ema','sma','wma'];
const maType     = input('MA Type', 'ema', MA_OPTIONS);
const lenFast    = input.number('Fast MA (MovAve)', 34, { min: 1 });
const lenSlow    = input.number('Slow MA (MovAvew)', 89, { min: 1 });
const atrLength  = input.number('ATR Length', 34, { min: 1 });

const showHistogram = input.boolean('Show Histogram', true);
const histOpacity   = input.number('Histogram Opacity (0–1)', 0.45, { min: 0, max: 1, step: 0.05 });

const showDaily     = input.boolean('Show Daily Lines (Fast/Slow)', true);
const show4h        = input.boolean('Show 4h Lines (21/55)', false);
const show1h        = input.boolean('Show 1h Lines (5/14)',  false);

/* ===== Compact ADT =====
   ADT = 10 * Σ_L (Close - Close[L]) / L / ATR, L∈{2,3,5,8,13,21,34,55,89,144} */
const c   = close;
const c2  = shift(c, 2),  c3  = shift(c, 3),  c5  = shift(c, 5),  c8  = shift(c, 8),  c13 = shift(c, 13);
const c21 = shift(c,21),  c34 = shift(c,34),  c55 = shift(c,55),  c89 = shift(c,89),  c144= shift(c,144);
const atrV = atr(atrLength);

const ADT = for_every(c,c2,c3,c5,c8,c13,c21,c34,c55,c89,c144,atrV,
  (cc,cc2,cc3,cc5,cc8,cc13,cc21,cc34,cc55,cc89,cc144,atrRaw) => {
    const core =
      (cc-cc2)/2 + (cc-cc3)/3 + (cc-cc5)/5 + (cc-cc8)/8 + (cc-cc13)/13 +
      (cc-cc21)/21 + (cc-cc34)/34 + (cc-cc55)/55 + (cc-cc89)/89 + (cc-cc144)/144;
    const denom = (atrRaw == null || atrRaw === 0) ? 1e-4 : atrRaw;
    return 10 * (core / denom);
  }
);

/* ===== MAs of ADT ===== */
const maFn    = (maType === 'sma') ? sma : (maType === 'wma') ? wma : ema;
const MovAve  = maFn(ADT, lenFast);   // daily fast
const MovAvew = maFn(ADT, lenSlow);   // daily slow

// Optional faster sets
const MovAve4h  = maFn(ADT, 21);
const MovAvew4h = maFn(ADT, 55);
const MovAve1h  = maFn(ADT, 5);
const MovAvew1h = maFn(ADT, 14);

/* ===== Color helpers ===== */
function hexToRgbaSafe(color, a){
  // Gracefully handle nulls and accept '#rgb' or '#rrggbb'
  if (color == null) return `rgba(128,128,128,${a})`;
  if (typeof color !== 'string') return `rgba(128,128,128,${a})`;
  if (color.startsWith('rgba(')) {
    // Already rgba; optionally override alpha
    if (a == null) return color;
    return color.replace(/rgba((d+),(d+),(d+),[^)]+)/, `rgba($1,$2,$3,${a})`);
  }
  if (!color.startsWith('#')) {
    // Fallback for named colors (shouldn't happen with our palette)
    return `rgba(128,128,128,${a})`;
  }
  let h = color.replace('#','');
  if (h.length === 3) h = h.split('').map(ch => ch + ch).join('');
  const r = parseInt(h.slice(0,2),16), g = parseInt(h.slice(2,4),16), b = parseInt(h.slice(4,6),16);
  return `rgba(${r},${g},${b},${a})`;
}

// Palette (HEX for reliable opacity)
const MAGENTA    = '#ff00ff';
const UPTICK     = '#00ff00';
const DARK_GRAY  = '#444444';
const DARK_GREEN = '#006400';
const LIME       = '#66ff66';
const DOWNTICK   = '#ff6a00';
const BLUE       = '#0080ff';
const LIGHT_GRAY = '#bbbbbb';
const RED        = '#ff0000';
const PINK       = '#ff66cc';
const GRAY       = '#808080';

/* ===== Histogram colors (based on MovAve vs MovAvew) ===== */
const fP = shift(MovAve, 1), sP = shift(MovAvew, 1);
const baseColors = for_every(MovAve, MovAvew, fP, sP, (f, s, fp, sp) => {
  const crossDown  = (fp != null && sp != null) ? (fp >= sp && f < s) : false;
  const fastAbove  = f > s;
  const bothPos    = f > 0 && s > 0;
  const bothNeg    = f < 0 && s < 0;
  const posInc     = (fp != null) ? f > fp : false;
  const negInc     = (fp != null) ? f < fp : false;
  if (crossDown) return MAGENTA;
  if (fastAbove && bothPos) return posInc ? UPTICK     : DARK_GRAY;
  if (fastAbove && bothNeg) return posInc ? DARK_GREEN : LIME;
  if (!fastAbove && bothPos) {
    const widen = (sp != null && fp != null) ? (s - f) > (sp - fp) : false;
    return widen ? DOWNTICK : (negInc ? BLUE : LIGHT_GRAY);
  }
  if (!fastAbove && bothNeg) return negInc ? RED : PINK;
  return GRAY;
});

// Semi-transparent histogram (guard against null colors)
const histColors = baseColors.map(col => hexToRgbaSafe(col, histOpacity));

/* ===== Paint (histogram first, lines on top) ===== */
if (showHistogram) {
  paint(MovAve, { name: 'MovAve (hist)', style: 'histogram', color: histColors, padding: 0, width: 2 });
}

if (showDaily) {
  paint(MovAve,  { name: 'MovAve',  color: '#22aa22', thickness: 2 });
  paint(MovAvew, { name: 'MovAvew', color: '#ff9900', thickness: 2 });
}

if (show4h) {
  paint(MovAve4h,  { name: 'MovAve 4h (21)',  color: '#00bcd4', thickness: 1 });
  paint(MovAvew4h, { name: 'MovAvew 4h (55)', color: '#ab47bc', thickness: 1 });
}

if (show1h) {
  paint(MovAve1h,  { name: 'MovAve 1h (5)',   color: '#1f77b4', thickness: 1 });
  paint(MovAvew1h, { name: 'MovAvew 1h (14)', color: '#ff7f0e', thickness: 1 });
}

/* Zero line */
paint(MovAve.map(() => 0), { name: 'Zero', color: '#888888', thickness: 1 });

/* ===== High-contrast MA Gap (fast − slow) ===== */
const gap = for_every(MovAve, MovAvew, (f, s) => f - s);

// Neon green above 0, hot magenta below 0 (very high contrast)
const gapColors = gap.map(v => (v >= 0 ? '#00ff3a' : '#ff00ff'));

// Subtle halo to increase legibility on any background
paint(gap, { name: 'MA Gap (halo)', color: 'rgba(0,0,0,0.35)', thickness: 5 });

// Colored dotted line on top
paint(gap, { name: 'MA Gap (fast−slow)', color: gapColors, thickness: 2, style: 'dotted' });
